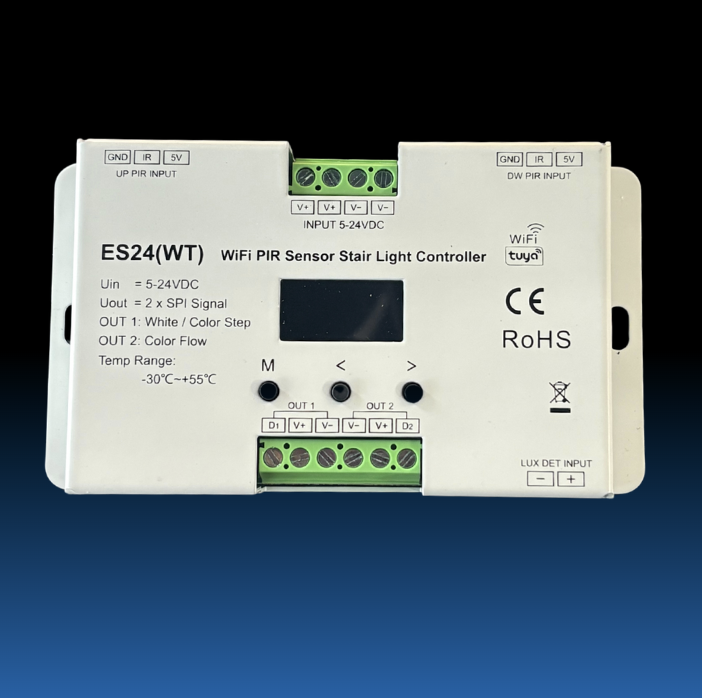

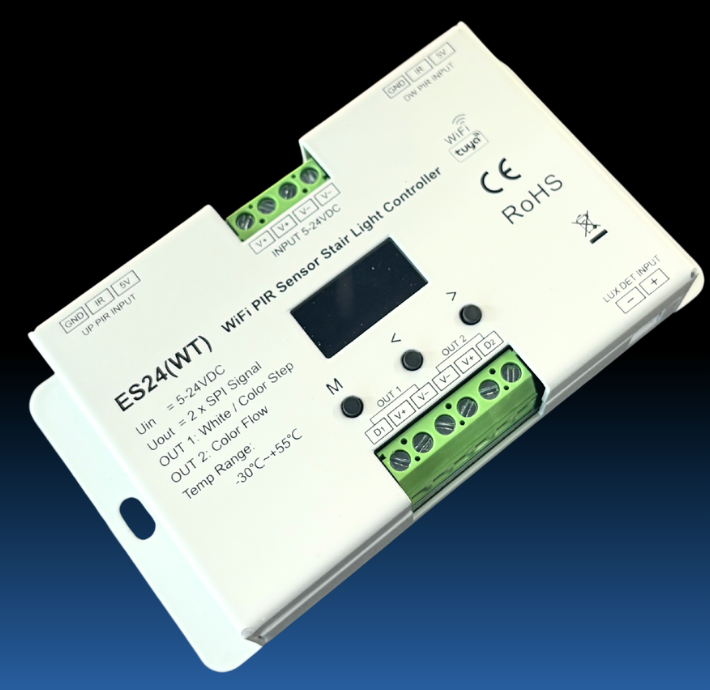

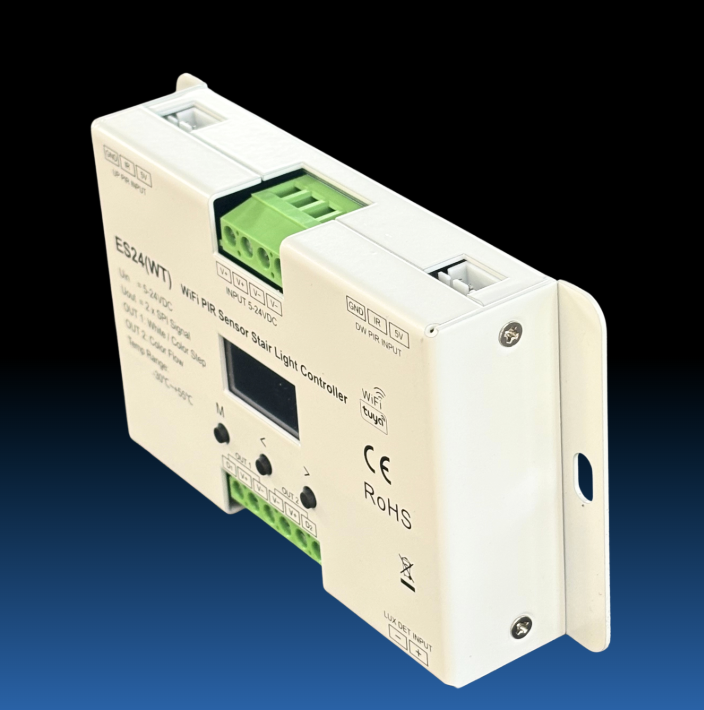

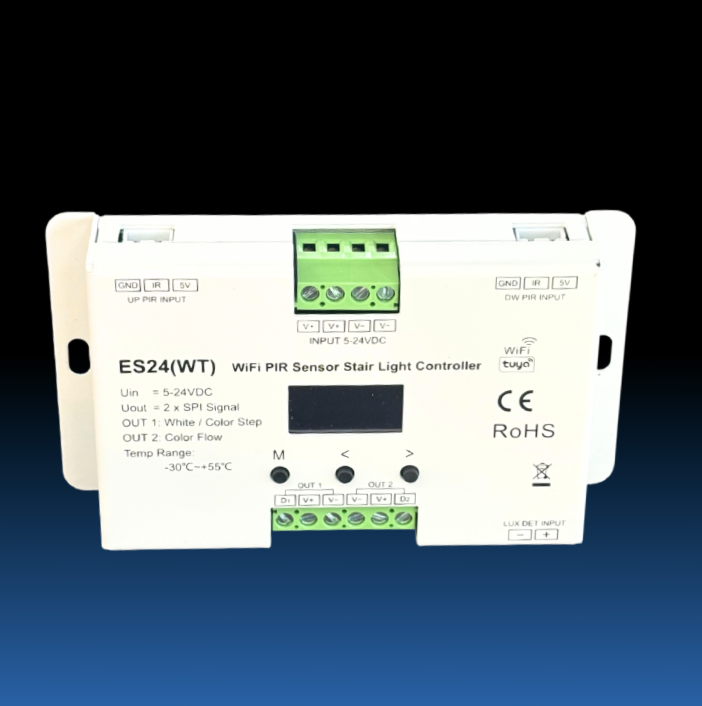

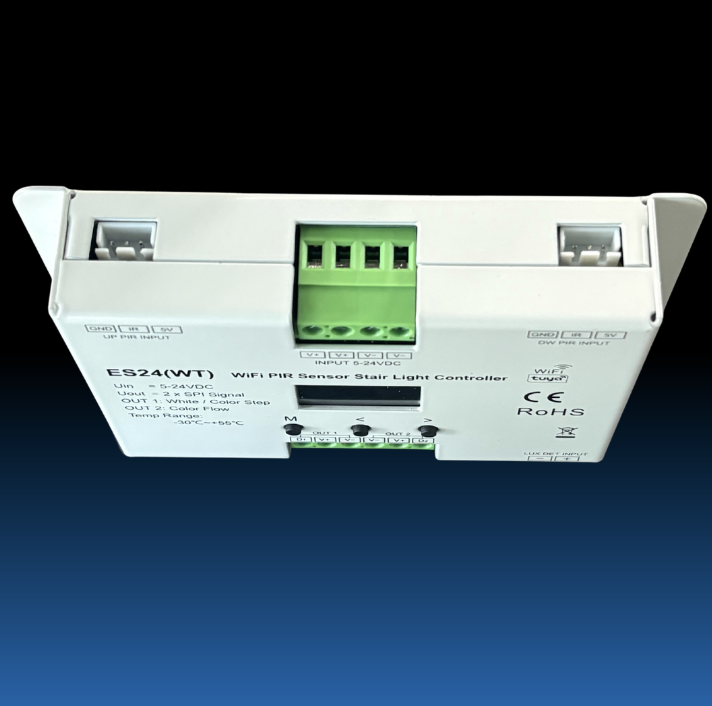

Smart PIR Sensor Stair Light Controller
The PIR Sensor Stair Light Controller brings automatic lighting control to modern staircases. Dual PIR sensors detect movement and activate the programmed lighting sequence as people approach the stairs.
The system supports WiFi and SPI digital LED control, allowing flexible control of compatible RGB and white LED lighting.
WiFi SPI Stair Lighting Control
The WiFi-enabled controller provides smart control for staircase lighting systems. Its dual SPI (TTL) outputs allow two lighting groups to operate independently.
One output can control individual stair lighting, while the second output can create flowing RGB effects. This makes the controller suitable for both practical step lighting and decorative installations.
Dual PIR Motion Detection
Dual PIR sensors provide detection from both directions of the staircase. The controller can respond when a person enters the sensing area and activate the programmed lighting sequence.
A built-in daylight sensor can also help control operation based on surrounding light levels. As a result, the staircase lighting system can operate more efficiently.
RGB and White LED Stair Lighting
The controller supports both white LED step lighting and dynamic RGB effects. You can create sequential lighting patterns for each step or add flowing colour animations for decorative applications.
The system supports up to 72 steps, making it suitable for residential staircases as well as larger commercial installations.
18 Digital RGB LED IC Types
The PIR Sensor Stair Light Controller supports 18 programmable digital RGB LED IC types:
TM1804, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A, GW6205, GS8206, UCS5603, UCS2603, SM16714D and SM16703P.
Users can select the required IC type and RGB colour order to suit the connected digital LED strip.
Easy Stair Light Setup
The controller features an OLED display and three-button configuration system. This allows installers to adjust settings such as lighting speed and brightness.
The complete system can include an ES24 Master Controller, ES-F Step Sub-Controllers, compatible digital LED strips, dual PIR sensors and a suitable 5–24V DC power supply.
For compatible LED strip lighting, explore our LED Strip Lights.
Applications
This WiFi SPI stair light controller suits many lighting projects, including:
- Residential staircases
- Smart homes
- Hotels
- Cinemas
- Restaurants
- Commercial buildings
- Architectural lighting
- Decorative RGB stair lighting
- White LED step lighting
- Interior staircase projects
The controller provides a flexible way to create automatic, sequential and colourful staircase lighting effects.
Professional Staircase Lighting Control
With dual PIR detection, WiFi control, dual SPI outputs and support for up to 72 steps, this controller provides a versatile solution for advanced LED staircase installations.
It is designed for professional lighting projects that require automatic motion activation, programmable LED effects and independent lighting control.
