Stairs Lighting Controller 32

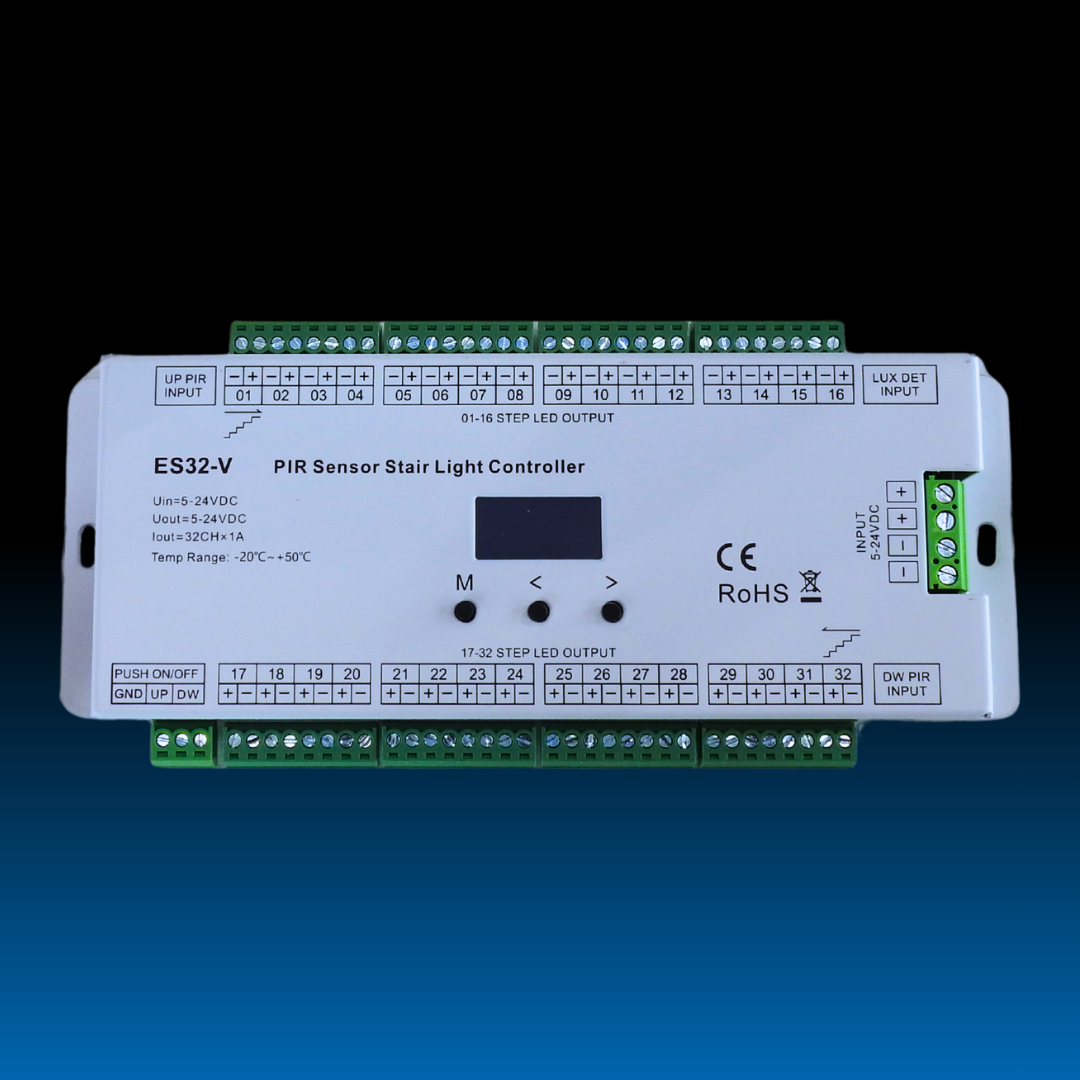

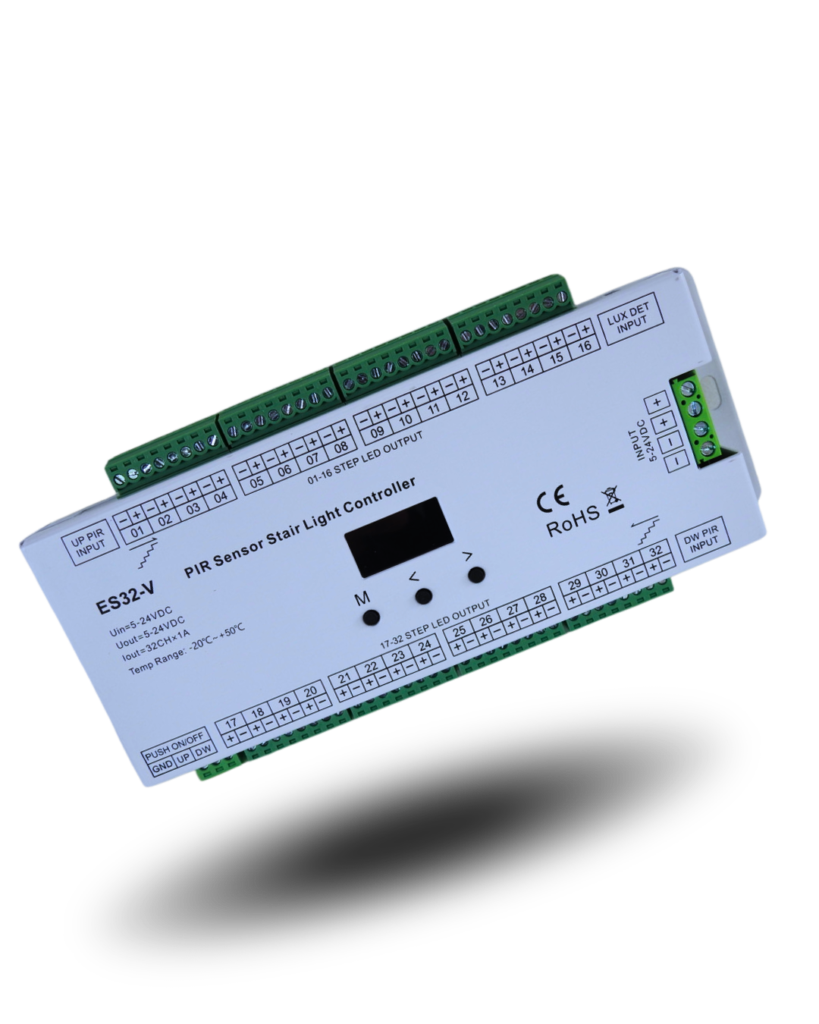

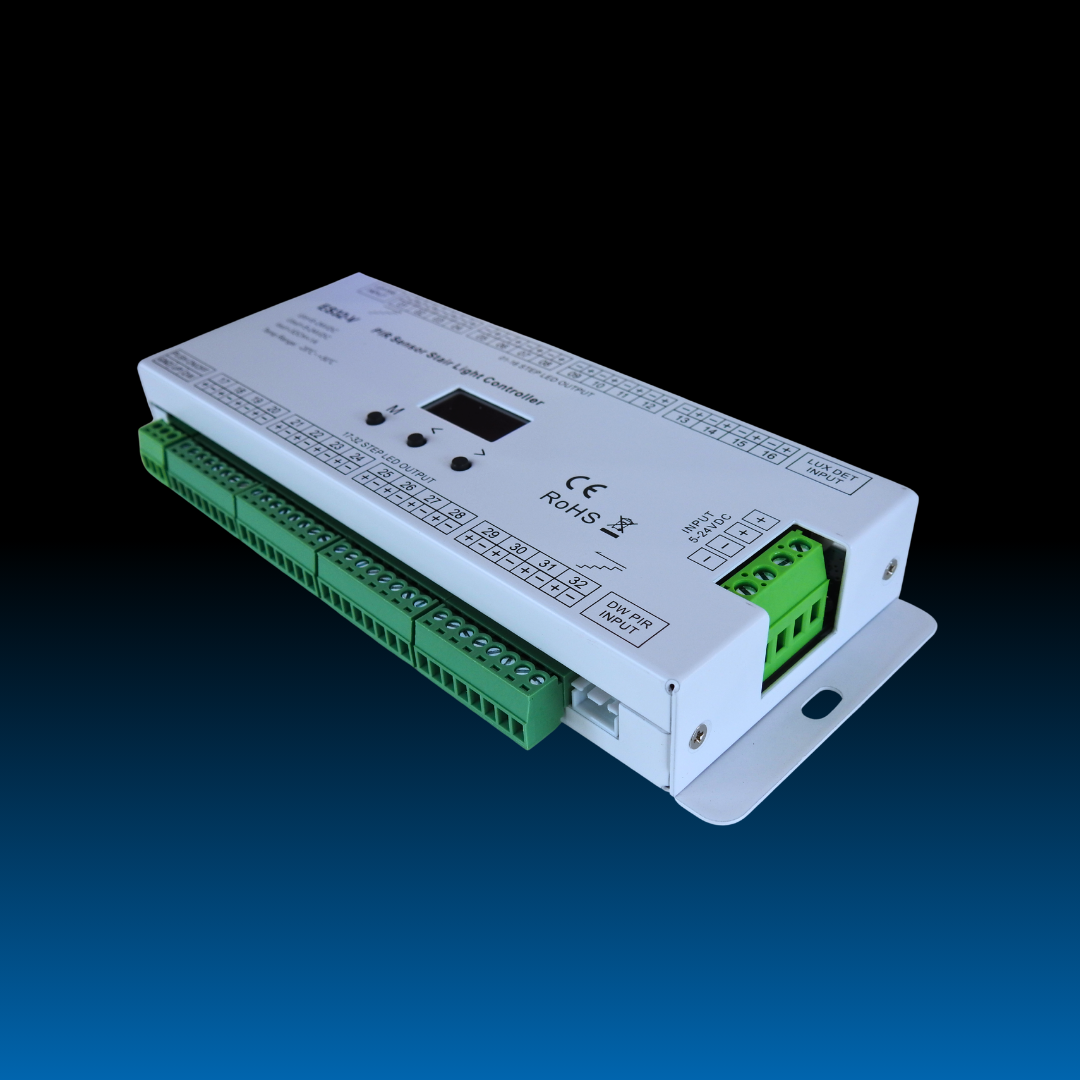

PIR Sensor Stair Light Controller – 32 Channel LED Stair Lighting System

Smart Motion-Activated Stair Lighting Controller (5-24V DC)

The PIR Sensor Stair Light Controller is a professional-grade 32-channel LED stair lighting controller designed for intelligent, energy-efficient staircase illumination. Featuring dual PIR motion sensing, daylight detection, and multiple lighting animation modes, this controller delivers smooth, automatic stair lighting for residential and commercial installations.

Ideal for LED strip stair lighting, smart homes, architectural lighting, and modern building automation systems.

Key Features

• Dual PIR motion sensing for upward & downward movement detection
• Supports 32 individual LED step channels
• Built-in daylight sensor prevents unnecessary activation
• OLED digital display with simple 3-button configuration
• Compatible with 5–24V DC constant voltage LED strips
• Multiple lighting animation effects
• Adjustable brightness, speed & fade timing
• Manual override via dual push switches
• Short-circuit protection & self-testing function
• Disable faulty LED channels individually
• Designed for precise stair sensing using optional laser sensors

Intelligent Stair Lighting Modes

Choose from 6 dynamic lighting effects: Flow mode, Chase mode, Trail mode, Float mode, Five-step mode, One-step mode

Each mode supports:

• 1–8 adjustable speed levels
• 1–8 brightness levels
• Synchronised or sequential step activation
• Adjustable fade time (0–3 seconds)
• Auto-off delay (5 seconds – 10 minutes)

Input & Output Connections

• Power Input: 5–24V DC
• Daylight Sensor Input (LUX DET)
• UP PIR Sensor Input
• DOWN PIR Sensor Input
• Dual Push Switch Inputs (Manual ON/OFF)
• LED Outputs:  Channels 01–16 Step LED Output, Channels 17–32 Step LED Output

Compatible with single-color low-voltage LED strips.

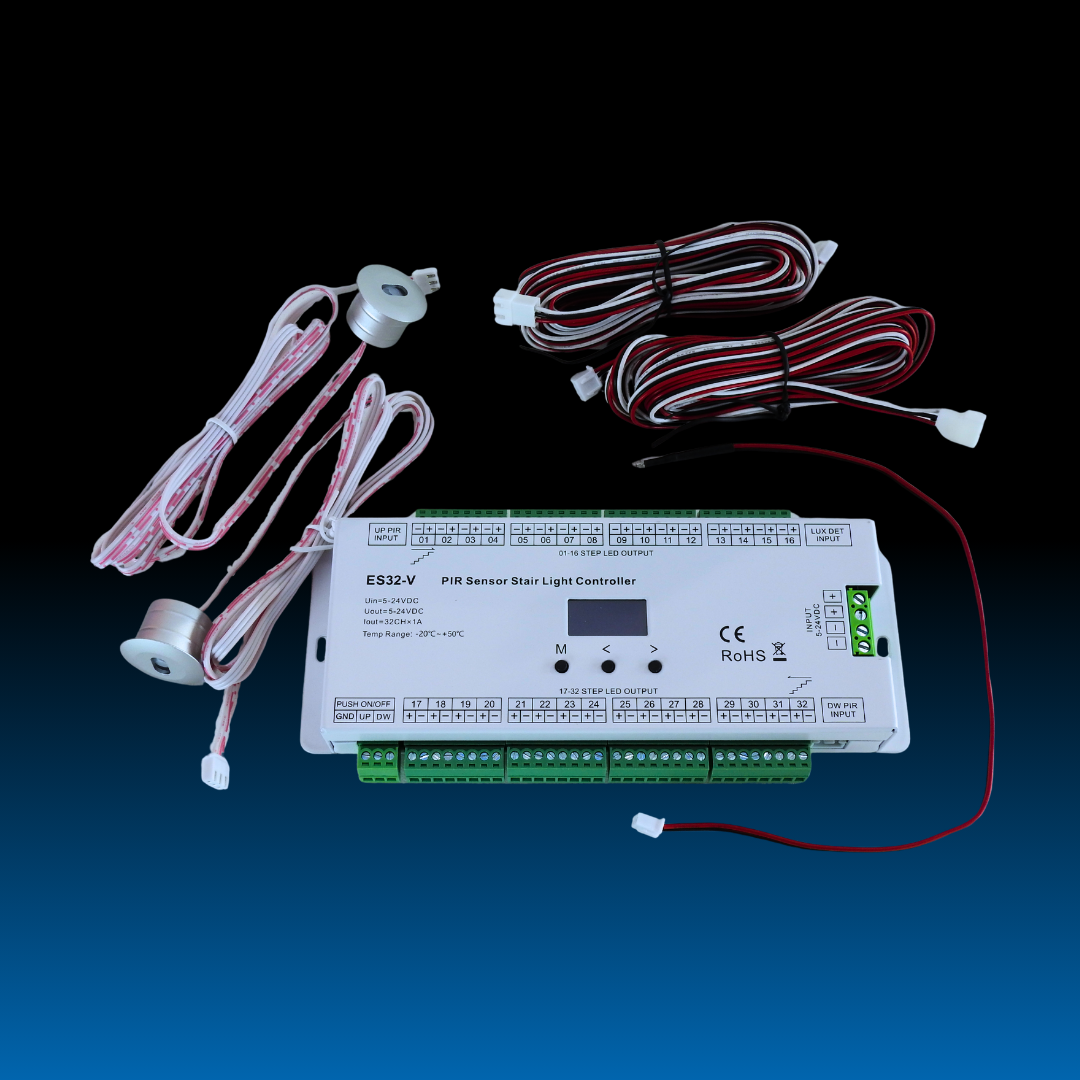

Typical Installation

System setup includes:

• AC100–240V power supply
• Constant voltage LED strips
• Dual PIR sensors
• Optional laser sensing heads (EL-C)
• Manual push switches

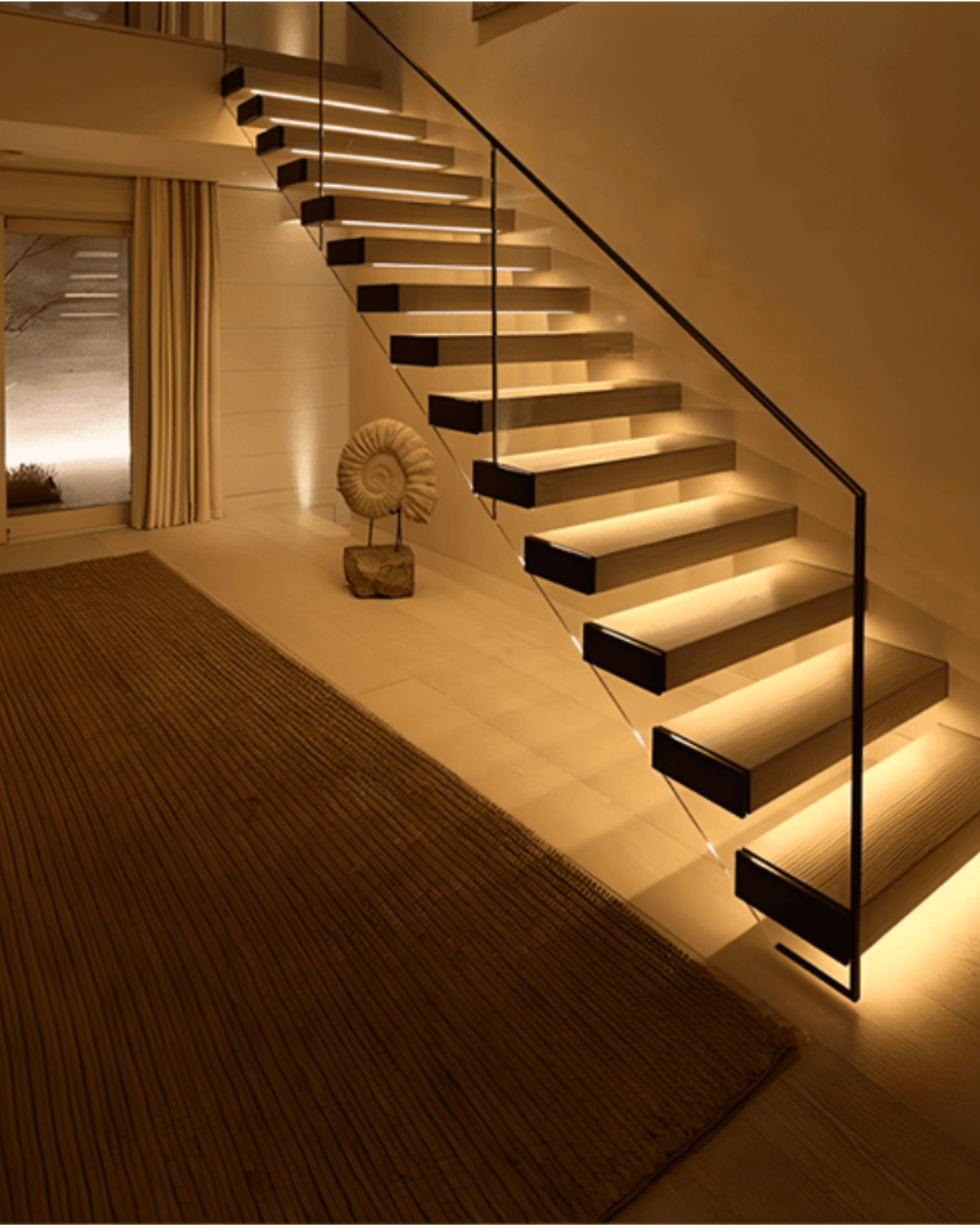

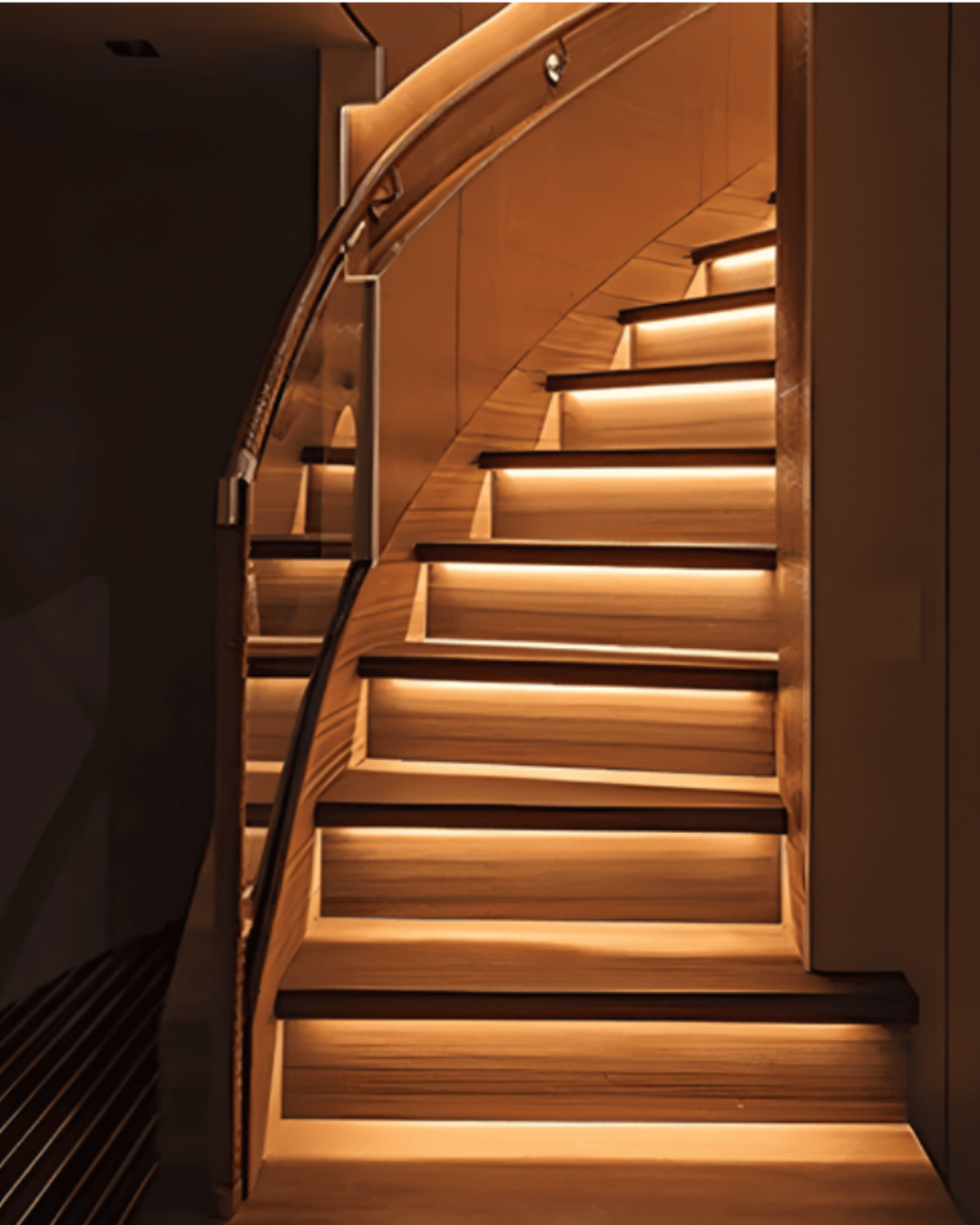

Perfect for:

• Residential staircases
• Smart homes
• Hotels & apartments
• Cinemas
• Commercial buildings
• Architectural lighting projects

Safety & Certification

• CE Certified
• RoHS Compliant
• EMC Standards: EN IEC 55015, EN IEC 61547
• Safety Standards: EN 61347-1 / EN 61347-2,  EN 62493
• Warranty, 5-Year Manufacturer Warranty, Built for long-term reliability and professional installations.
