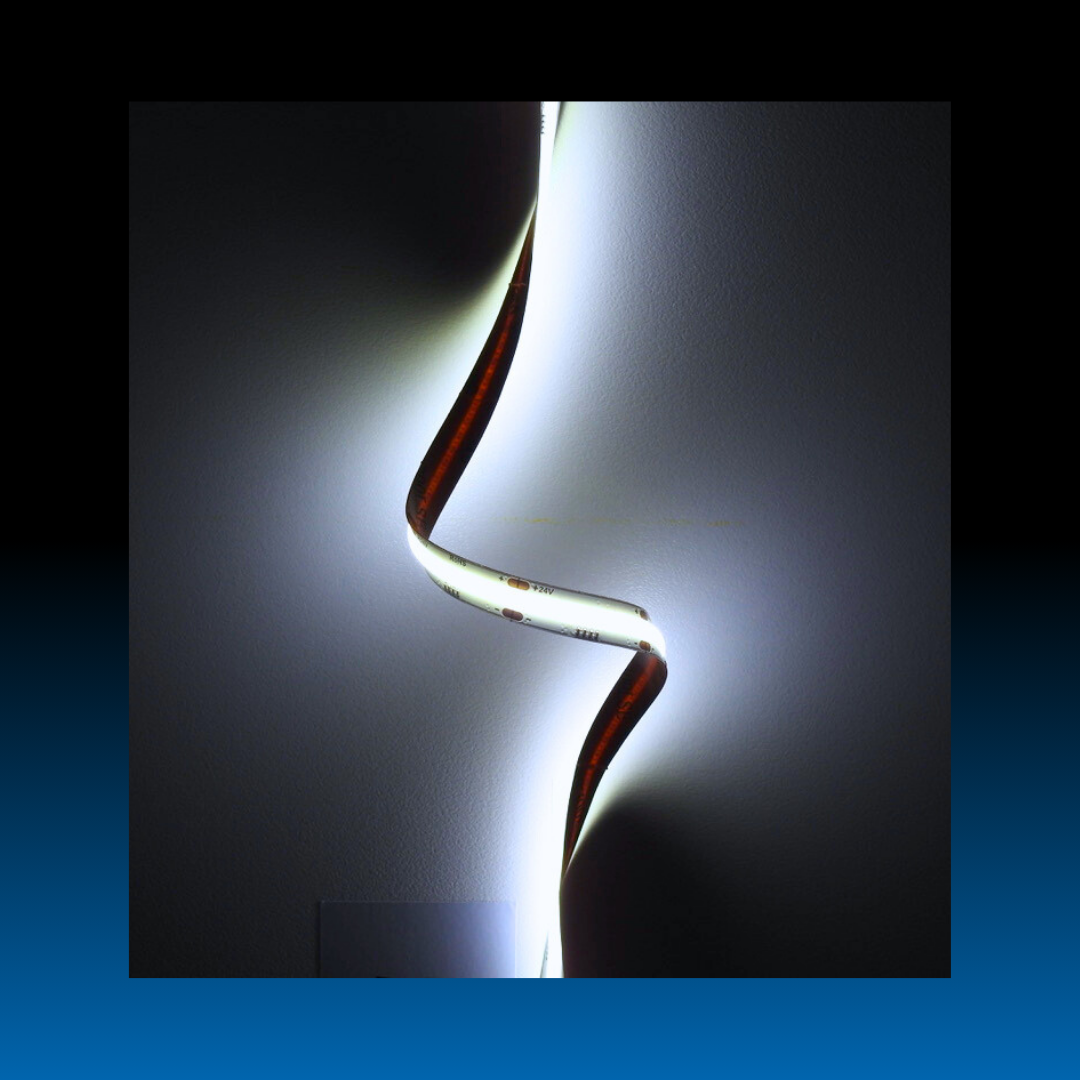

The 20W COB Flexi LED Strip Light is designed to provide bright, smooth and continuous illumination without visible LED spots. High-density COB LED technology creates a clean linear lighting effect with soft and uniform luminance, making it an excellent choice for modern decorative, architectural and commercial lighting.
With a 140° beam angle and CRI >90, this 20W COB LED strip provides wide, even illumination with excellent colour rendering. Its high brightness, high efficiency and low attenuation make it suitable for applications where consistent and reliable lighting is required.
The flexible 5000mm × 10mm LED strip operates at 24V DC constant voltage and features high-quality industrial silicone construction, high light transmittance and 3M adhesive backing. For effective heat dissipation and long-term performance, the strip must be installed with a suitable aluminium profile.
Available in 3000K warm white, 4000K neutral white and 6500K cool white, the strip provides flexible lighting options for different interior and commercial environments.
The 5m COB Flexi LED Strip Light is suitable for cabinet lighting, shelving, furniture, corner decoration, contour lighting, retail displays, shopping malls, feature walls, joinery and architectural lighting.
Key Features & Benefits
- 20W COB Flexi LED Strip Light
- 5m / 5000mm length
- 10mm strip width
- 24V DC constant voltage
- High-density COB LED technology
- Smooth linear illumination
- No visible LED light spots
- Soft and uniform luminance
- CRI >90
- 140° beam angle
- High brightness
- High efficiency
- Low light attenuation
- Fast heat dissipation
- High-temperature resistance
- Long operating life
- High light transmittance
- High-quality industrial silicone construction
- 3M adhesive backing
- 4.0 ± 0.2mm luminous surface width
- Aluminium profile installation required
Available Colour Temperatures
The 20W COB Flexi LED Strip Light is available in:
| Colour Temperature | Light Appearance | Recommended Applications |
|---|---|---|
| 3000K | Warm White | Homes, cabinets, furniture and decorative lighting |
| 4000K | Neutral White | General, commercial and architectural lighting |
| 6500K | Cool White | Bright interiors, displays and feature lighting |
Applications
This 20W COB LED Strip Light is suitable for indoor decorative, architectural and commercial lighting applications, including:
- Kitchen cabinet lighting
- Cabinet lighting
- Wardrobe lighting
- Shelf lighting
- Furniture lighting
- Display cabinet lighting
- Corner decoration
- Contour lighting
- Cove lighting
- Joinery lighting
- Feature walls
- Ceiling details
- Retail displays
- Shopping malls
- Commercial interiors
- Architectural feature lightingDecorative lighting
Installation Instructions
Follow these steps when installing the 20W COB Flexi LED Strip Light:
- Clean the mounting surface and ensure it is dry and free from dust and grease.
- Measure the required length and cut the strip only along the designated cutting marks.
- If additional wires are required, solder them at the next suitable printed connection location.
- When applying the strip, peel the release paper from the 3M tape gradually.
- Do not remove the entire release paper at once, as this can make positioning more difficult.
- Install the strip into a suitable aluminium LED profile for effective heat dissipation.
- Do not press directly on the LED beads or luminous surface during installation.
Important Installation Notes
The 20W COB Flexi LED Strip Light must be used with an aluminium profile. The profile helps dissipate heat and supports reliable performance and long operating life.
Use a suitable 24V DC constant-voltage LED driver with sufficient power for the total LED strip length.
For the best result, ensure the mounting surface is clean before applying the adhesive backing. Avoid excessive pressure or sharp bending during installation.
