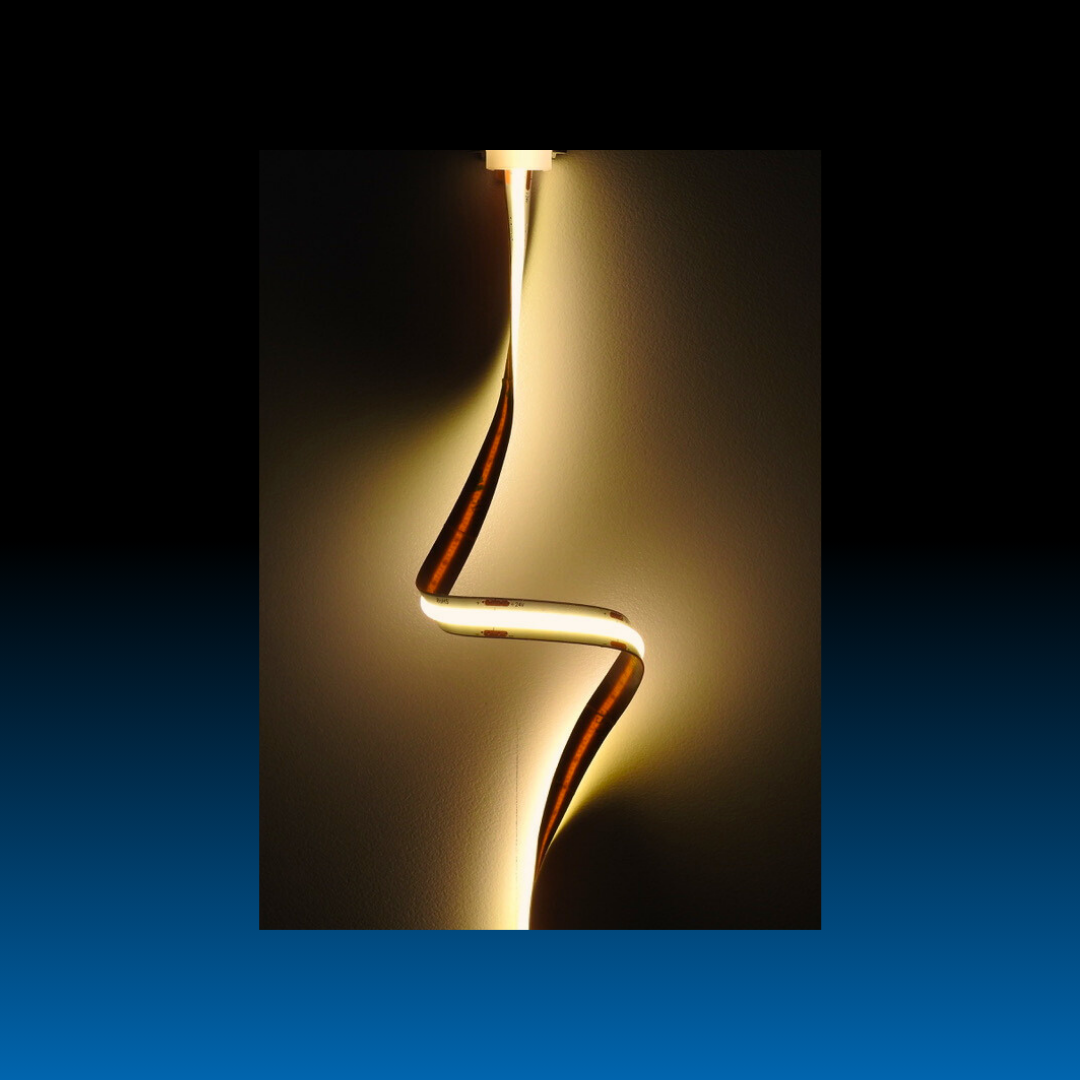

The 20W COB Flexi LED Strip Light is designed to provide bright, smooth and continuous illumination without visible LED spots. Using high-density COB LED technology, this flexible LED strip produces a clean linear lighting effect with soft and uniform luminance.
With a 140° beam angle and CRI >90, the strip delivers excellent colour rendering, high brightness and efficient light output. COB technology creates a seamless line of light, making it ideal for modern decorative, architectural, retail and commercial lighting applications.
The strip measures 5000mm × 10mm and operates at 24V DC constant voltage. It features a flexible construction, high-quality industrial silicone protection and 3M adhesive backing for convenient installation inside a suitable aluminium LED profile.
Available in 3000K warm white, 4000K neutral white and 6500K cool white, this 20W COB LED strip provides flexible lighting options for different interior designs and applications.
The 5m COB Flexi LED Strip Light is suitable for indoor decorative lighting, including cabinet lighting, shelving, corner decoration, contour lighting, furniture, shopping malls, retail displays and architectural feature lighting.
Key Features & Benefits
- 20W COB Flexi LED Strip Light
- 5m / 5000mm continuous length
- 10mm strip width
- 24V DC constant voltage
- High-density COB LEDs
- Smooth linear illumination
- No visible LED light spots
- Soft and uniform luminance
- CRI >90 for excellent colour rendering
- 140° wide beam angle
- High brightness and efficiency
- Low light attenuation
- Fast heat dissipation
- High-temperature resistance
- Long operating life
- High light transmittance
- High-quality industrial silicone construction
- 3M adhesive backing
- 4.0 ± 0.2mm luminous surface width
- Aluminium profile installation required
Available Colour Temperatures
The 20W COB Flexi LED Strip Light is available in three colour temperatures:
- 3000K – Warm White: Warm and comfortable lighting for residential and decorative applications
- 4000K – Neutral White: Balanced illumination for general interior and commercial applications
- 6500K – Cool White: Bright, crisp lighting for areas requiring a cooler appearance
Applications
This 20W COB LED Strip Light is suitable for a wide range of indoor decorative and architectural lighting applications, including:
- Kitchen cabinet lighting
- Cabinet lighting
- Wardrobe lighting
- Shelf lighting
- Furniture lighting
- Display cabinet lighting
- Corner decoration
- Contour lighting
- Cove lighting
- Joinery lighting
- Feature walls
- Retail displays
- Shopping malls
- Commercial interiors
- Architectural feature lighting
- Decorative lighting
- Ceiling details
Installation Instructions
For the best results when installing the 20W COB Flexi LED Strip Light, follow these steps:
- Clean the mounting surface and make sure it is dry and free from dust or grease.
- Measure the required length and cut the LED strip only along the designated cutting marks.
- If additional wires are required, solder them at the next printed connection location.
- When applying the strip, peel the 3M release paper gradually as you install it.
- Avoid removing the entire release paper at once, as this can make the strip difficult to position correctly.
- Install the LED strip into a suitable aluminium LED profile to assist with heat dissipation.
- Do not press directly on the COB LED surface during installation.
Important Installation Notes
The 20W COB Flexi LED Strip Light must be used with a suitable aluminium profile. The aluminium profile provides effective heat dissipation and helps maintain reliable performance and long operating life.
Use a compatible 24V DC constant-voltage LED driver with sufficient wattage for the total length of LED strip being installed.
Avoid bending the strip excessively and do not apply pressure directly to the LED luminous surface during installation.
