Certified Lighting Wire Connector – Safe & Reliable Internal Connection
Our high-performance wire connector is designed for secure internal electrical and lighting circuit connections, delivering long-term reliability, safety, and ease of installation. Manufactured with precision materials and compliant with international safety standards, it is ideal for professional lighting and electrical applications.
Certifications & Compliance
- Passed UL & CUL, ENEC, CQC, UKCA, and CE safety certifications
- Complies with EN 60998-2-2:2004 standards
Key Features
- Compact & Unique Design – Small footprint with a modern, space-saving structure
- Easy Installation – Button-type design allows fast wiring and secure clamping
- Stable & Reliable Performance – Ensures stable electrical conduction and long-term safety
- High-Conductivity Material – Made from high-precision imported copper for excellent conductivity and contact performance
- Flexible Wiring Compatibility – Securely clamps wires of different specifications without loosening after installation
Technical Specifications
-
Wire Range: 0.5–4.0 mm²

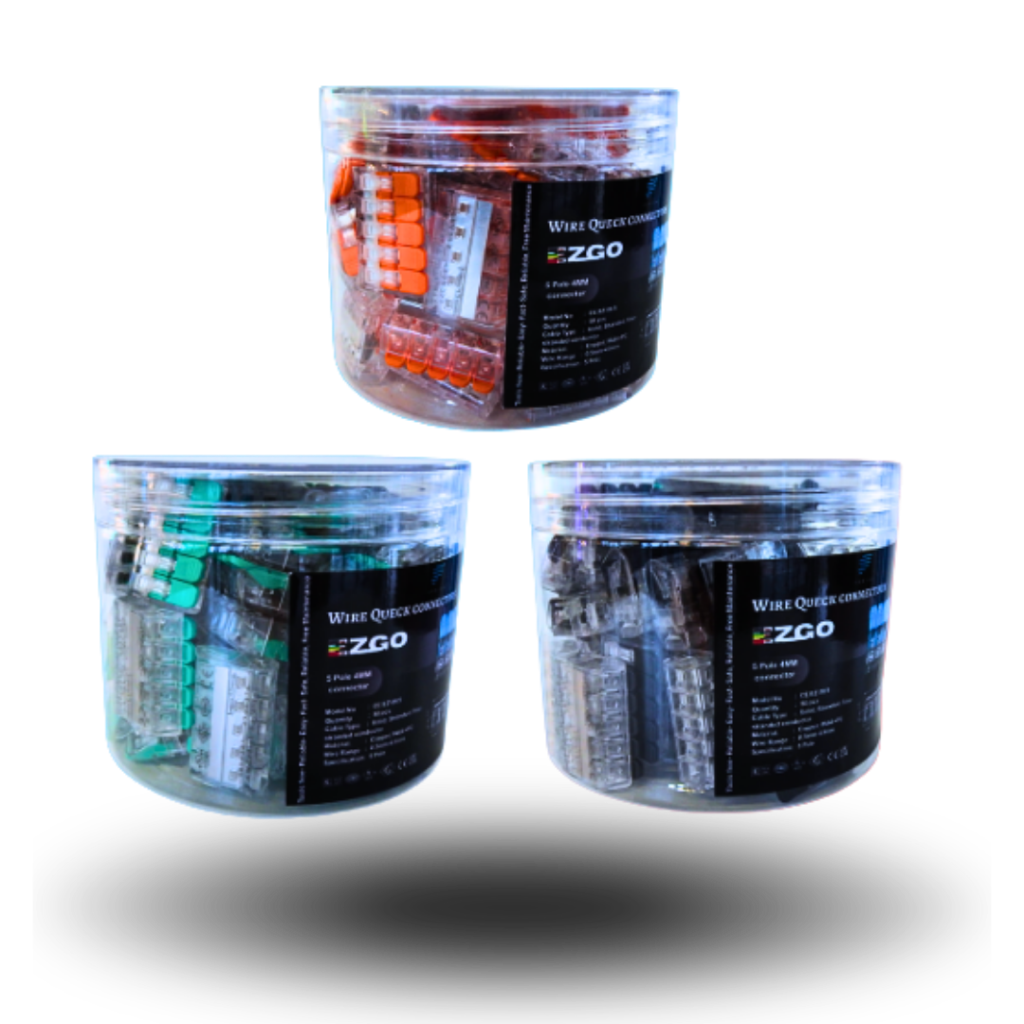

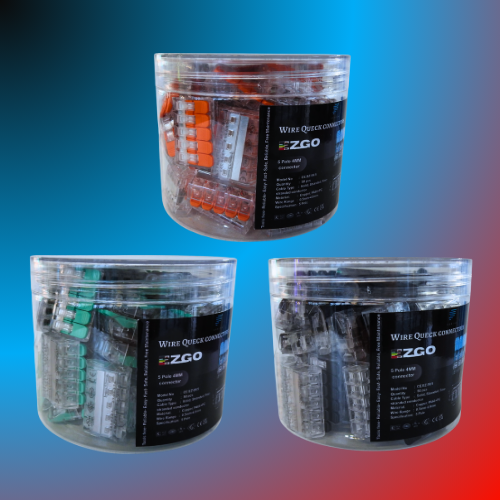

- Quantity 50 Pcs per Jar
- Colour Red & Black & Green
- Single hard wire
- Multi-strand hard wire
- Multi-strand flexible wire
- 20–10 AWG
- Dimension 100x100x80mm
-
Stripping Length: 14 mm (full strip)
Applications
- Internal connection of complete electrical equipment
- Internal wiring of lighting circuits and power
- Suitable for residential, commercial, and professional lighting systems
Item Description – Lever Wire Connector
For LED lighting projects, explore our LED Strip Lights for flexible lighting solutions. You can also find related wiring accessories in our LED Strip Connectors range.
Your Benefits
| Feature | Description |
|---|---|
| Ease of Use | Pull lever up, insert conductor, and push lever back down |
| Wire Options | Available in 2-wire, 3-wire, and 5-wire versions |
| Wide Compatibility | Suitable for all conductor types from 0.5–4.0 mm² |
| Time Saving | Faster installation for installers and device manufacturers |
| High Power Support | Suitable for devices with higher power consumption |
| Long Cable Runs | Safe installation with larger conductor cross-sections |
| Standard Mounting | Mounting carrier conforms to installation standards |
| Customisation | Custom mounting carriers available |
Connection Specifications
| Parameter | Specification |
|---|---|
| Actuation Type | Lever |
| Connectable Conductor Material | Copper |
| Nominal Cross-Section | 4 mm² |
| Solid Conductor | 0.5–4.0 mm² / 20–10 AWG |
| Stranded Conductor | 0.5–4.0 mm² / 20–10 AWG |
| Fine-Stranded Conductor | 0.5–4.0 mm² / 20–10 AWG |
| Strip Length | 12–14 mm / 0.47–0.55 in |
Environmental Requirements
| Parameter | Specification |
|---|---|
| Ambient Temperature (Operation) | +85 °C |
| Continuous Operating Temperature | 105 °C |
| Temperature Rating | T85 (per EN 60998-2-2:2004) |
