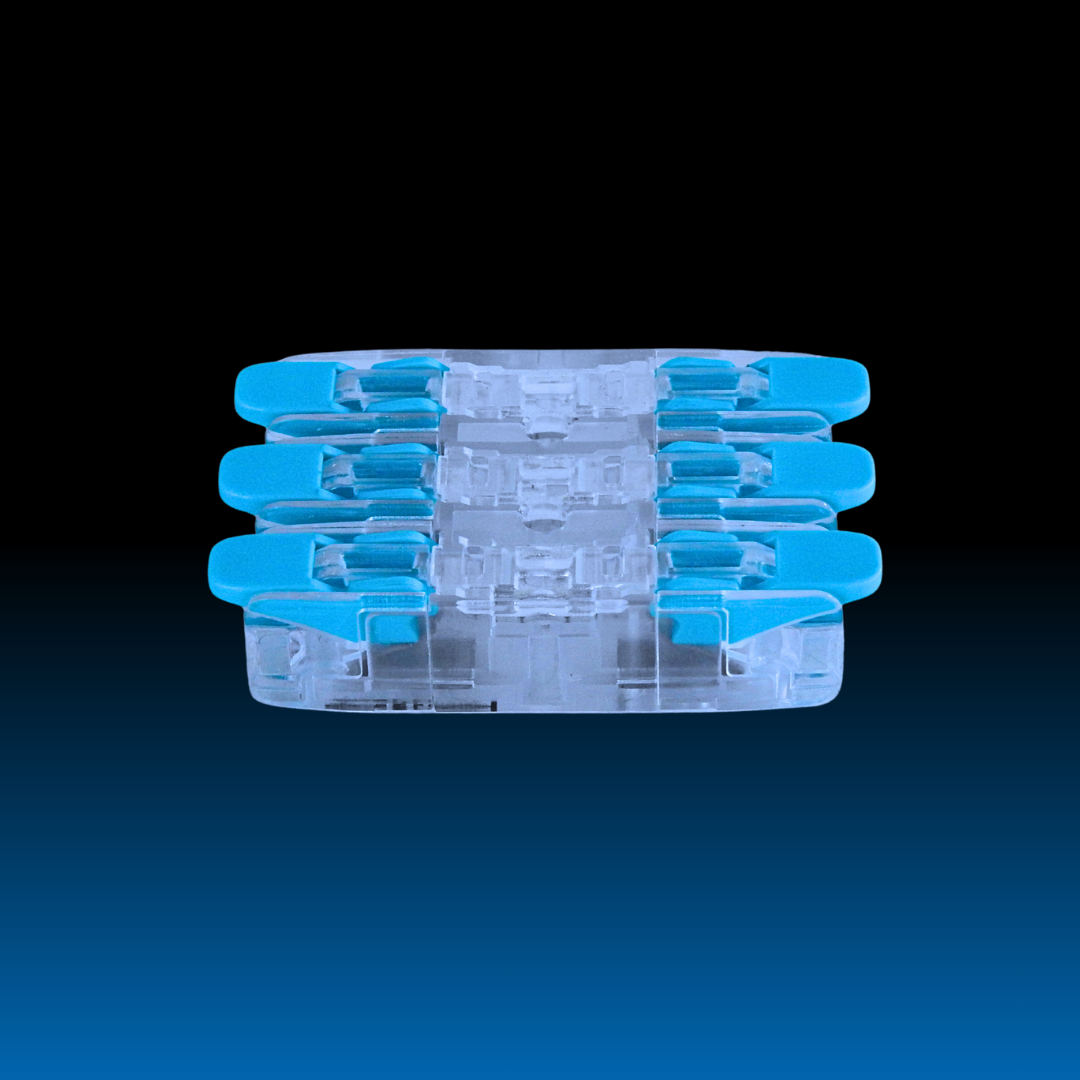

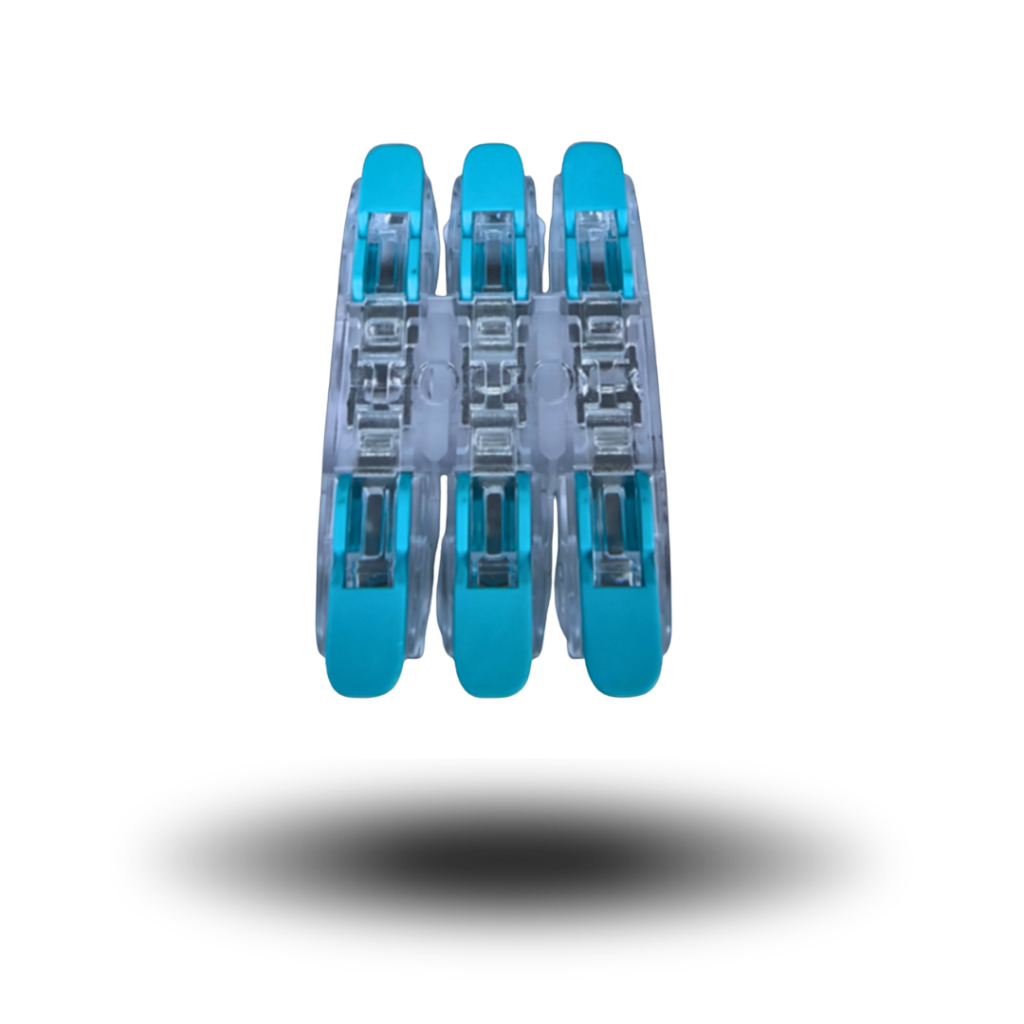

Lever Wire Connector for Electrical and Lighting Wiring

The Lever Wire Connector makes internal electrical and lighting connections simple. Its compact design helps installers connect compatible copper wires quickly and securely.

The connector suits lighting equipment, electrical devices and internal wiring. In addition, it supports several wire types and sizes for flexible installation.

Lever Wire Connector for Fast Installation

The Lever Wire Connector uses a simple lever mechanism. First, lift the lever. Next, insert the prepared wire. Finally, push the lever down to secure the connection.

This simple process can save installation time. It also makes wiring easier when installers need to check or change a connection.

Wide Wire Size Compatibility

The connector supports copper wires from 0.5–4.0mm². This range also covers 20–10 AWG wire sizes.

The connector works with:

• Solid copper wires
• Stranded copper wires
• Fine-stranded copper wires

Therefore, installers can use one connector type for several common wiring applications.

Always select the correct connector size for the wire and electrical application.

High-Conductivity Copper Contacts

The connector uses high-precision copper contact material. This helps provide stable electrical conduction when the wire sits correctly inside the connector.

As a result, the connector suits internal lighting and electrical equipment where a reliable wire connection matters.

Certified Electrical Connector

The connector meets several listed certification requirements. These include:

• UL & CUL
• ENEC
• CQC
• UKCA
• CE
• EN 60998-2-2:2004

These certifications provide useful information when you select components for electrical and lighting equipment.

Simple Lever Connection

The lever design makes the connection process quick and clear. You can open the lever, insert the wire and close the lever.

The connector supports 0.5–4.0mm² copper conductors. It also supports solid, stranded and fine-stranded wires.

For this reason, it can suit many internal wiring applications.

Suitable for Lighting Connections

The Lever Wire Connector suits internal lighting and electrical connections. You can use it inside electrical equipment, lighting circuits and power connections.

For lighting projects, you can also explore the Vesta Lines LED lighting range.

Recommended Wire Preparation

The connection specification lists a 12–14mm strip length. The product information also specifies 14mm for a full strip.

Prepare the wire before making the connection. Then insert the conductor fully into the connector and close the lever.

Always follow the manufacturer’s installation instructions.

Temperature Rating

The connector has an ambient operating temperature of +85°C. It also has a continuous operating temperature of 105°C.

In addition, the product carries a T85 temperature rating under the supplied EN 60998-2-2:2004 specification.

Check the operating conditions of the complete electrical installation before use.

Applications

The Lever Wire Connector suits a range of internal wiring applications, including:

• Internal electrical equipment connections
• Lighting circuit wiring
• Internal power connections
• Residential lighting systems
• Commercial lighting equipment
• Professional electrical equipment
• Device manufacturing
• Electrical control equipment

For LED lighting projects, explore the LED Strip Lights and LED Strip Connectors ranges from Vesta Lines.

Easy Electrical Wiring Solution

The Lever Wire Connector combines a compact design with simple lever operation. It supports 0.5–4.0mm² copper wires and several conductor types.

As a result, it provides a practical solution for internal electrical and lighting connections.

For professional electrical work, always follow the applicable electrical regulations and the manufacturer’s installation instructions.
