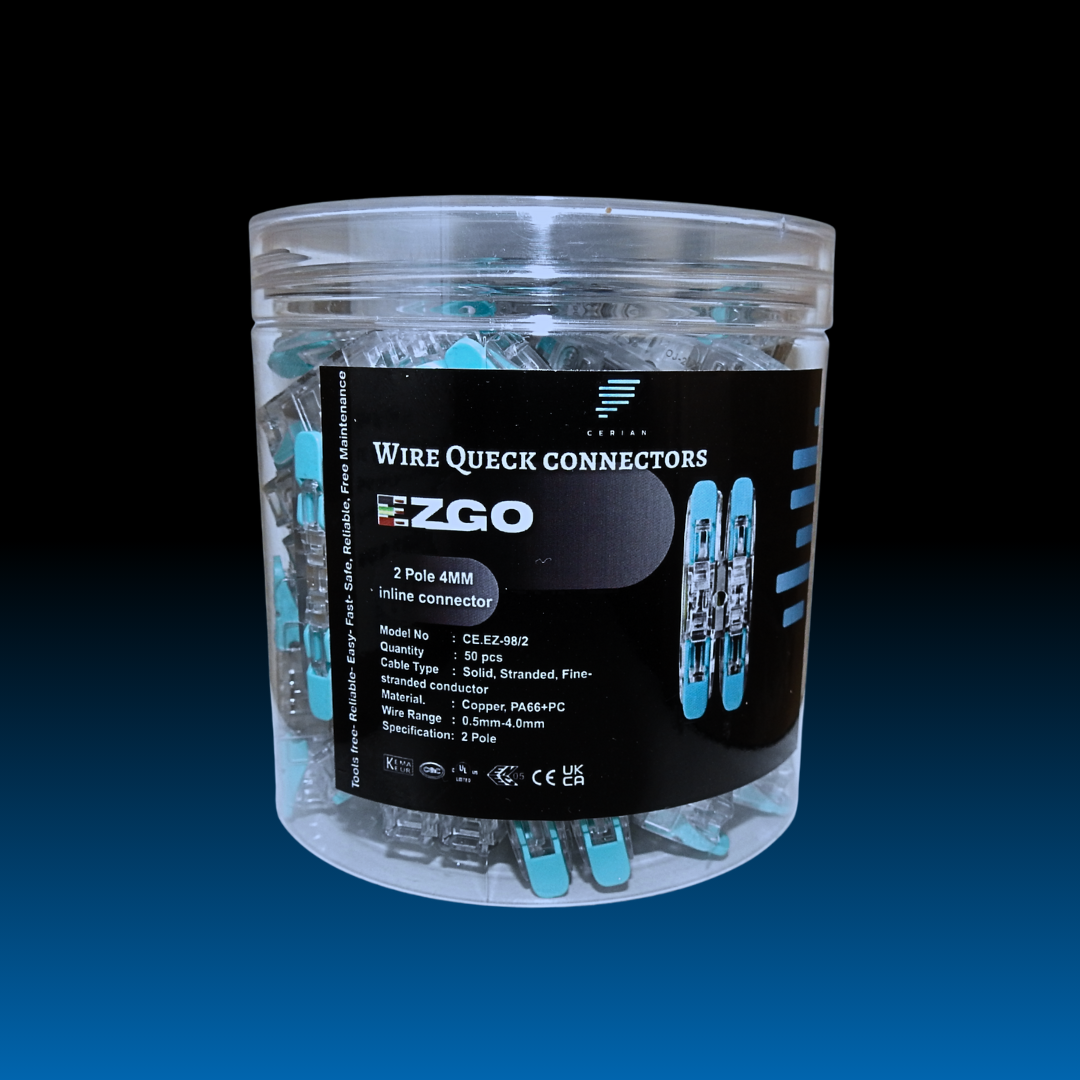

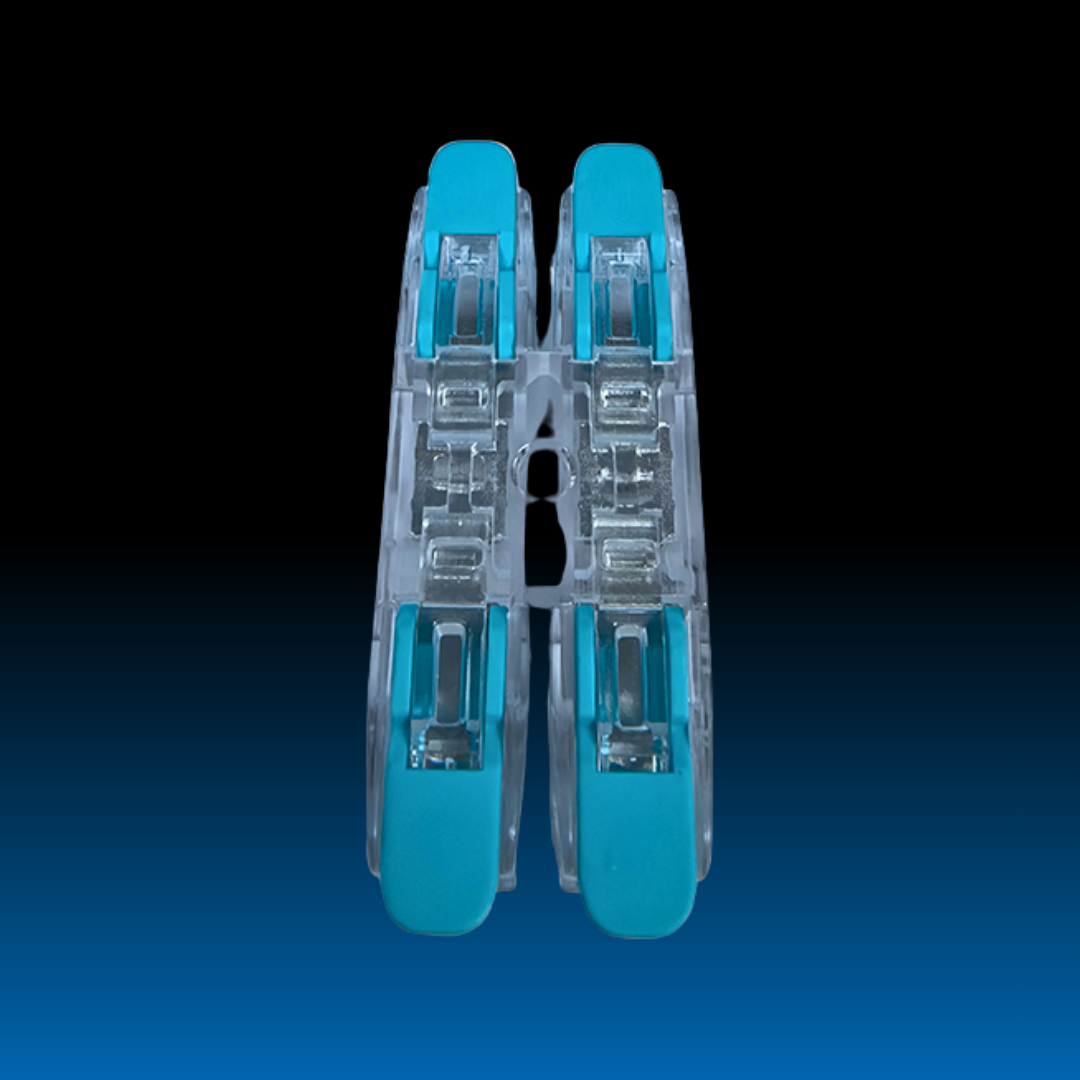

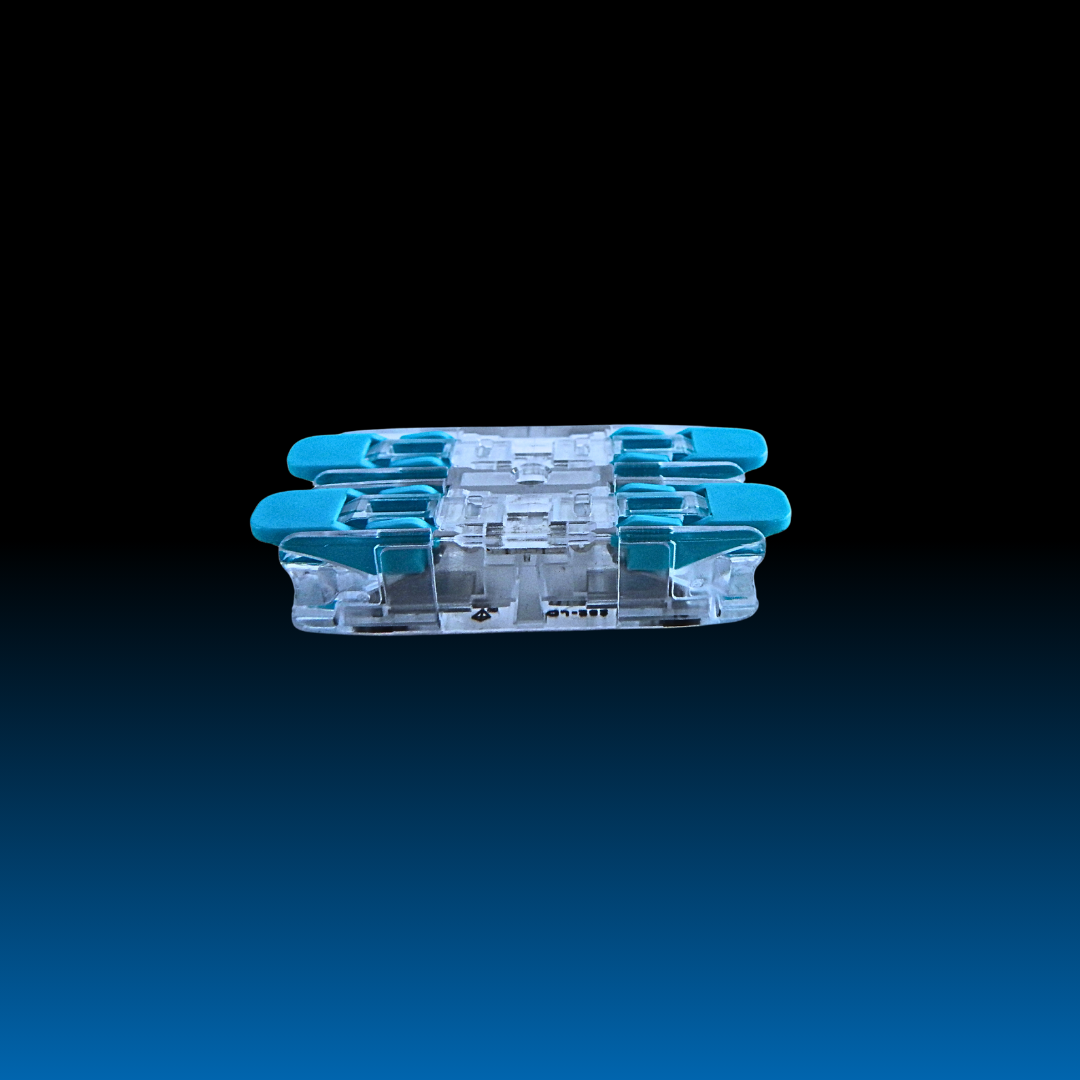

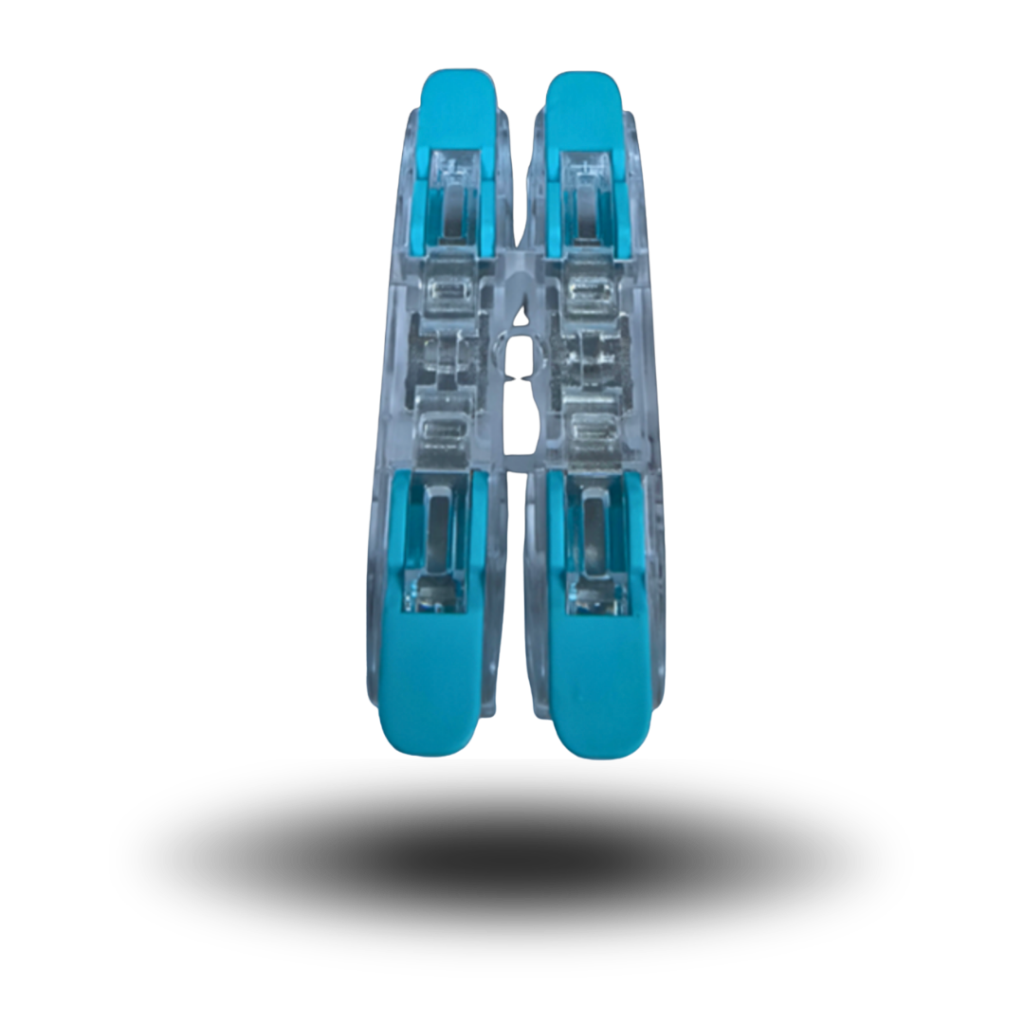

Lever Wire Connector for Electrical and Lighting Wiring
The Lever Wire Connector provides a simple solution for internal electrical and lighting connections. It supports copper wires from 0.5–4.0mm² and works with solid, stranded and fine-stranded conductors.
Lever Wire Connector for Fast Installation
First, lift the lever to open the wire entry. Next, insert the prepared conductor. Finally, push the lever back down to secure the wire.
This simple process helps installers make connections quickly. It also makes the connector easy to use in lighting equipment and electrical devices.
Wide Wire Size Compatibility
The connector supports wires from 0.5–4.0mm², or 20–10 AWG. Therefore, it can suit many common wiring sizes.
It works with:
- Solid conductors
- Stranded conductors
- Fine-stranded conductors
- Copper conductors
High-Conductivity Copper Contacts
The connector uses high-conductivity copper for the electrical contact. As a result, it provides a stable connection when installed correctly.
The compact design also helps save space inside electrical equipment and lighting products.
Certified Electrical Connector
The Lever Wire Connector has UL & CUL, ENEC, CQC, UKCA and CE certifications. It also complies with EN 60998-2-2:2004.
These certifications make it suitable for applications where recognised electrical standards are required.
Simple Lever Connection
The lever system provides a clear connection method. Lift the lever, insert the wire and close the lever.
This design can reduce wiring time. In addition, it makes the connection process easy to follow for installers.
Recommended Wire Preparation
Prepare each wire before making the connection. The specified stripping length is 14mm.
First, strip the insulation to the required length. Then, insert the conductor fully into the connector. Finally, close the lever and check the connection.
Temperature Rating
The connector has an ambient operating temperature of +85°C and a continuous operating temperature of 105°C. Its temperature rating is T85 according to EN 60998-2-2:2004.
Always select and install electrical connectors according to the requirements of the complete electrical system.
2-Wire and 3-Wire Options
The connector is available in 2-wire and 3-wire versions. Therefore, installers can select the configuration that suits the wiring application.
It can be used for internal connections in electrical equipment, lighting circuits and power systems.
Lighting and Electrical Applications
The Lever Wire Connector suits a range of internal wiring applications, including:
- LED lighting equipment
- Lighting circuits
- Electrical equipment
- Power connections
- Residential lighting systems
- Commercial lighting systems
- Professional electrical installations
For LED lighting projects, explore our LED Strip Lights for flexible lighting solutions. You can also find suitable wiring accessories in our LED Strip Connectors range.
For clean and secure LED strip installations, our LED Strip Extrusion Profiles provide aluminium mounting channels for LED strips.
Compact Electrical Wiring Solution
The Lever Wire Connector combines a compact design with a simple lever connection. It supports a wide range of copper wire sizes and conductor types.
As a result, it provides a practical option for internal electrical and lighting connections. Always follow the connector specifications and applicable electrical installation requirements.
