Certified Lighting Wire Connector – Safe & Reliable Internal Connection
Our high-performance wire connector is designed for secure internal electrical and lighting circuit connections, delivering long-term reliability, safety, and ease of installation. Manufactured with precision materials and compliant with international safety standards, it is ideal for professional lighting and electrical applications.
Certifications & Compliance
- Passed UL & CUL, ENEC, CQC, UKCA, and CE safety certifications
- Complies with EN 60998-2-2:2004 standards
Key Features
- Compact & Unique Design – Small footprint with a modern, space-saving structure
- Easy Installation – Button-type design allows fast wiring and secure clamping
- Stable & Reliable Performance – Ensures stable electrical conduction and long-term safety
- High-Conductivity Material – Made from high-precision imported copper for excellent conductivity and contact performance
- Flexible Wiring Compatibility – Securely clamps wires of different specifications without loosening after installation
Technical Specifications
-
Wire Range: 0.5–4.0 mm²
- Colour Green
- Single hard wire
- Multi-strand hard wire
- Multi-strand flexible wire
- 20–10 AWG
- Dimension 85x85x60mm
-
Stripping Length: 14 mm (full strip)
Applications
- Internal connection of complete electrical equipment
- Internal wiring of lighting circuits and power
- Suitable for residential, commercial, and professional lighting systems

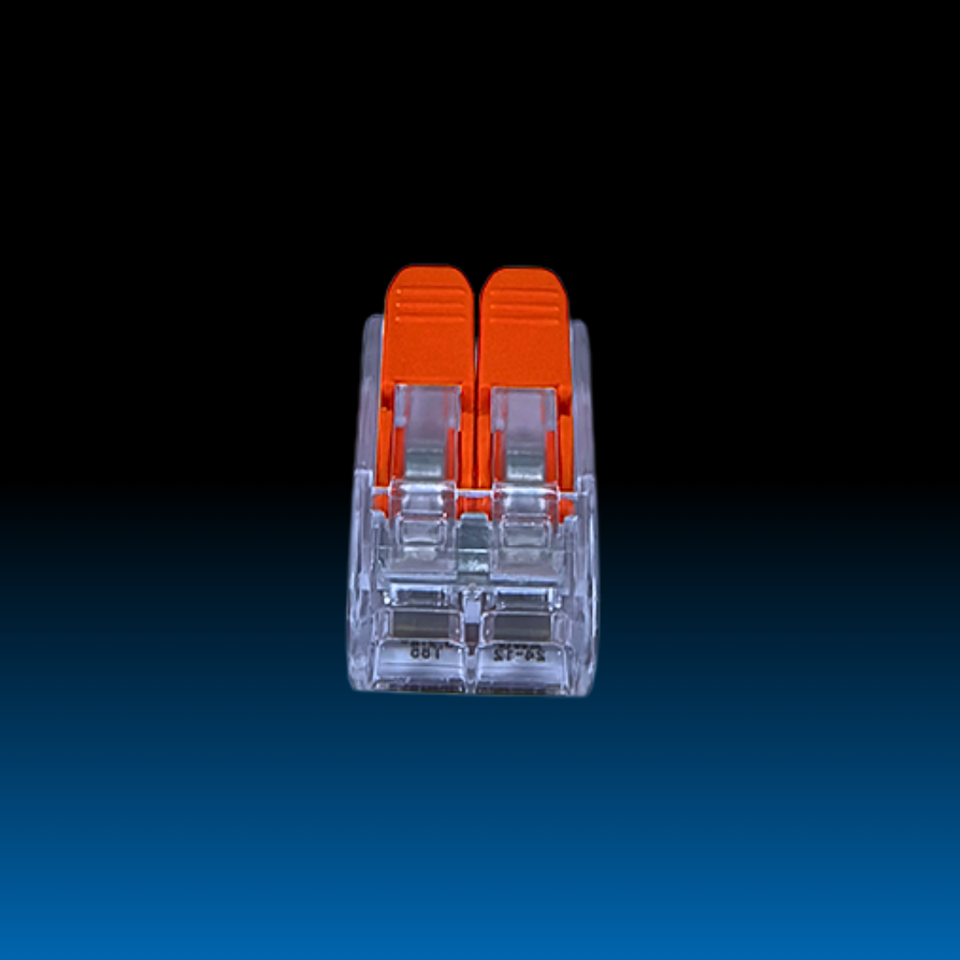

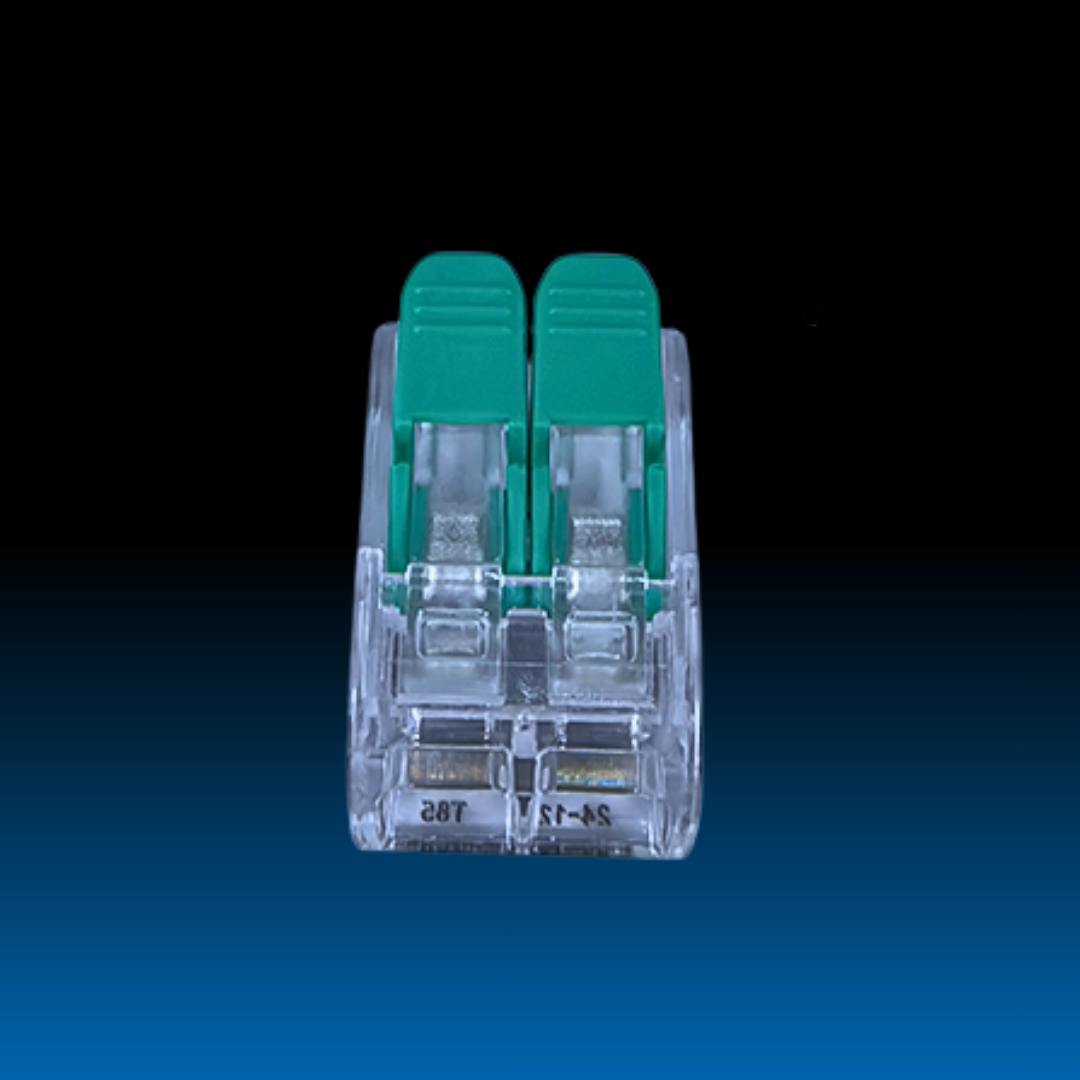

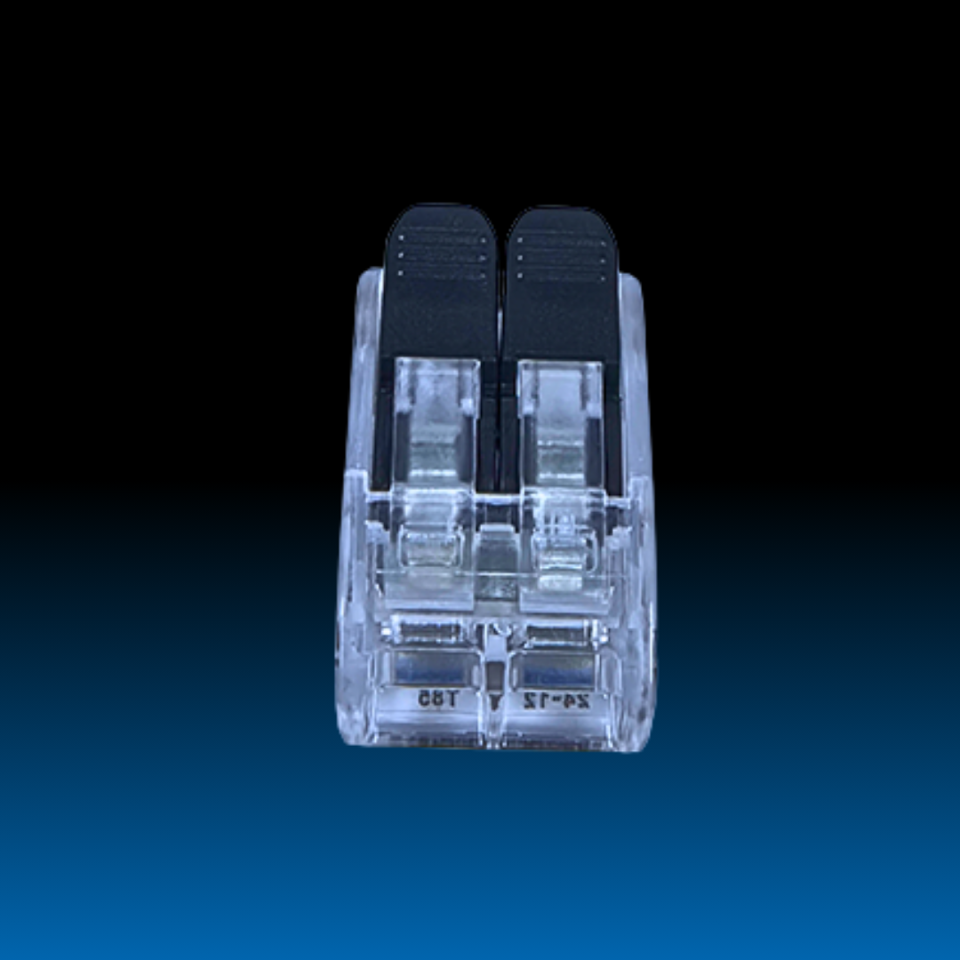

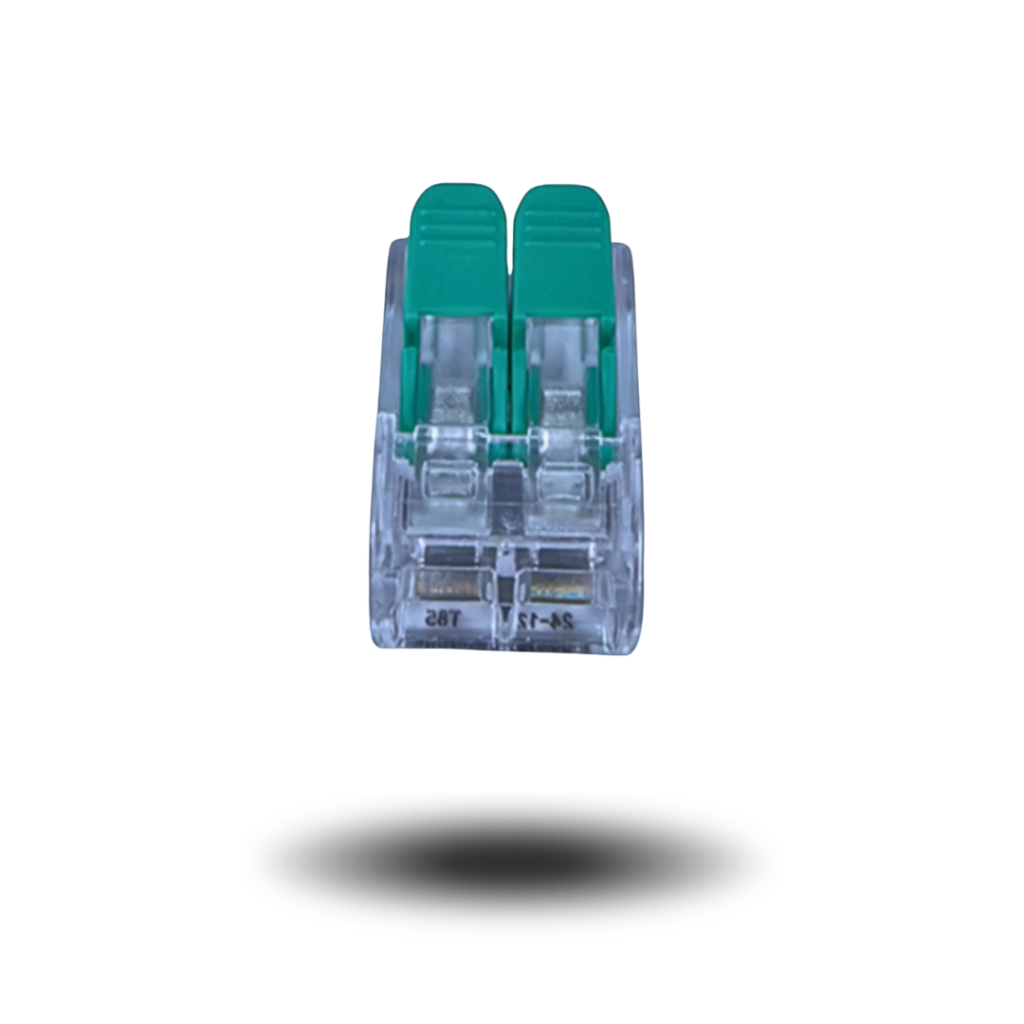

Item Description – Lever Wire Connector
Your Benefits
| Feature | Description |
|---|---|
| Ease of Use | Pull lever up, insert conductor, and push lever back down |
| Wire Options | Available in 2-wire, 3-wire, and 5-wire versions |
| Wide Compatibility | Suitable for all conductor types from 0.5–4.0 mm² |
| Time Saving | Faster installation for installers and device manufacturers |
| High Power Support | Suitable for devices with higher power consumption |
| Long Cable Runs | Safe installation with larger conductor cross-sections |
| Standard Mounting | Mounting carrier conforms to installation standards |
| Customisation | Custom mounting carriers available |
Connection Specifications
| Parameter | Specification |
|---|---|
| Actuation Type | Lever |
| Connectable Conductor Material | Copper |
| Nominal Cross-Section | 4 mm² |
| Solid Conductor | 0.5–4.0 mm² / 20–10 AWG |
| Stranded Conductor | 0.5–4.0 mm² / 20–10 AWG |
| Fine-Stranded Conductor | 0.5–4.0 mm² / 20–10 AWG |
| Strip Length | 12–14 mm / 0.47–0.55 in |
Environmental Requirements
| Parameter | Specification |
|---|---|
| Ambient Temperature (Operation) | +85 °C |
| Continuous Operating Temperature | 105 °C |
| Temperature Rating | T85 (per EN 60998-2-2:2004) |
