White PIR Motion Sensor Wall Light – IP54 Smart Sensor Controller
Adjustable Detection | Dusk-to-Dawn Mode | Energy Saving Lighting Control
Product Overview

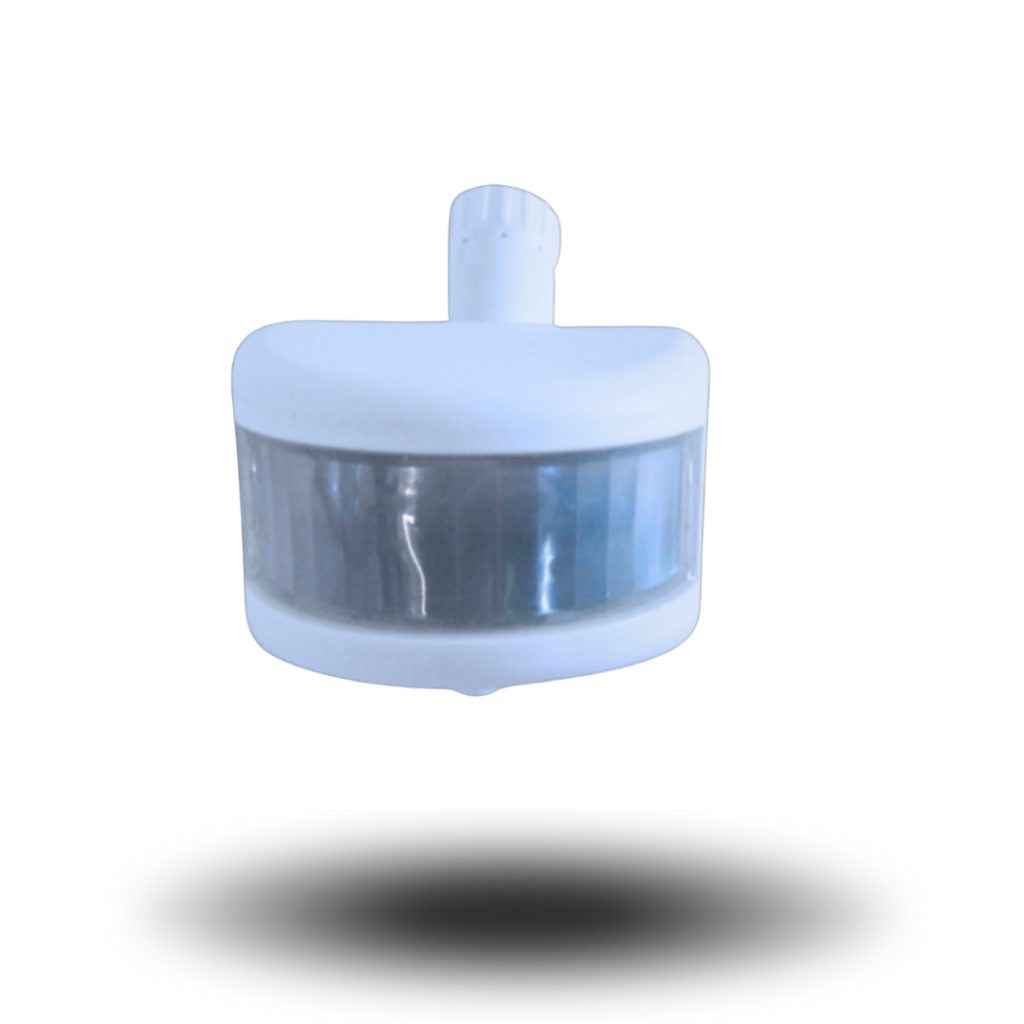

The CE-B PIR Motion Sensor Wall Light Controller is a smart lighting solution designed to automatically control wall lights based on motion detection and ambient light levels. Built with advanced PIR sensing technology, the sensor improves energy efficiency while enhancing safety and convenience in residential and commercial environments.
Featuring adjustable sensitivity, delay time, and lux settings, this sensor allows precise customization for different lighting applications including entrances, walkways, garages, and outdoor walls.
Key Features
PIR motion detection technology
Adjustable sensing distance (4–10 meters)
Dusk-to-Dawn automatic lighting mode
Adjustable delay time (10 seconds – 10 minutes)
Day/Night LUX control (3–2000 LUX)
Energy-saving Home Mode (100% → 20% brightness)
Manual override switch
IP54 weather protection
Easy wall installation
Smart Lighting Modes
Home Mode
- Light turns 100% brightness when motion detected
- After delay time, reduces to 20% standby brightness
- Improves security while saving energy
Dusk-to-Dawn Mode
- Automatically activates only at night
- No operation during daytime
- Fully automatic lighting control
Adjustable Controls
The sensor includes multiple adjustment knobs:
- TIME: Controls lighting delay duration
- SENS: Adjusts detection distance
- LUX: Sets ambient light activation level
- Manual Switch: Override automatic mode
Applications
Ideal for:
- Residential entrances
- Outdoor wall lighting
- Garages & driveways
- Pathways & corridors
- Commercial buildings
- Security lighting systems
Installation
- Fix mounting base to wall surface
- Connect L / N / Ground wiring terminals
- Select preferred color temperature (WW/NW/CW)
- Attach lamp body and restore power
âš Installation by certified electrician recommended.
Safety Notes
- Turn OFF power before installation
- Product must be grounded
- Handle carefully during installation
- Maintenance should be performed by qualified professionals
