CERIAN 24V 320W Driver

CERIAN 24V 320W LED Driver with 24V DC constant voltage output and up to 13.33A capacity. Features short-circuit protection, electrical isolation, 1200mm flex cable and Australian 2-pin plug. IP20 rated for indoor use and suitable for compatible 24V LED strip lights and decorative lighting.

You Save $34.00

Original price was: $187.00.Current price is: $149.60. (price_including_tax).

Inc.GST
Sale!

Additional information

Weight 0.4 kg
Dimensions 30 × 9 × 5 cm
Brand

Cerain
Enquire Now Call: 02 8103 0048

You may also need LED Strip light

COB strip light 10W 10MM 10M 4K
CERIAN 10W 4000K COB Flexi LED Strip Light
Original price was: $116.60.Current price is: $76.96. (price_including_tax).
Add to cart
Cerian 12W Flexi LED Strip lights RGB IP68
Cerian 12W Flexi LED Strip lights RGB IP68
Original price was: $686.40.Current price is: $549.12. (price_including_tax).
Add to cart
20W Flexi LED Strip lights 3000k IP65 10MM 5M
Cerian 20W Flexi LED Strip lights 3000k IP65
Original price was: $159.72.Current price is: $127.78. (price_including_tax).
Add to cart

add smart Controller to your order

CERIAN LED Remote Control RF Wireless Handset
CERIAN LED Remote Control RF Wireless Handset
Original price was: $68.20.Current price is: $54.56. (price_including_tax).
Add to cart
CERIAN Smart RGBCW LED Strip Controller – WiFi & Bluetooth 5-in-1
CERIAN Smart RGBCW LED Strip Controller – WiFi & Bluetooth 5-in-1
Original price was: $93.50.Current price is: $74.80. (price_including_tax).
Add to cart
LED STRIP LIGHT CONTROLLER
LED SINGLE STRIP LIGHT CONTROLLER
Original price was: $71.50.Current price is: $57.20. (price_including_tax).
Add to cart

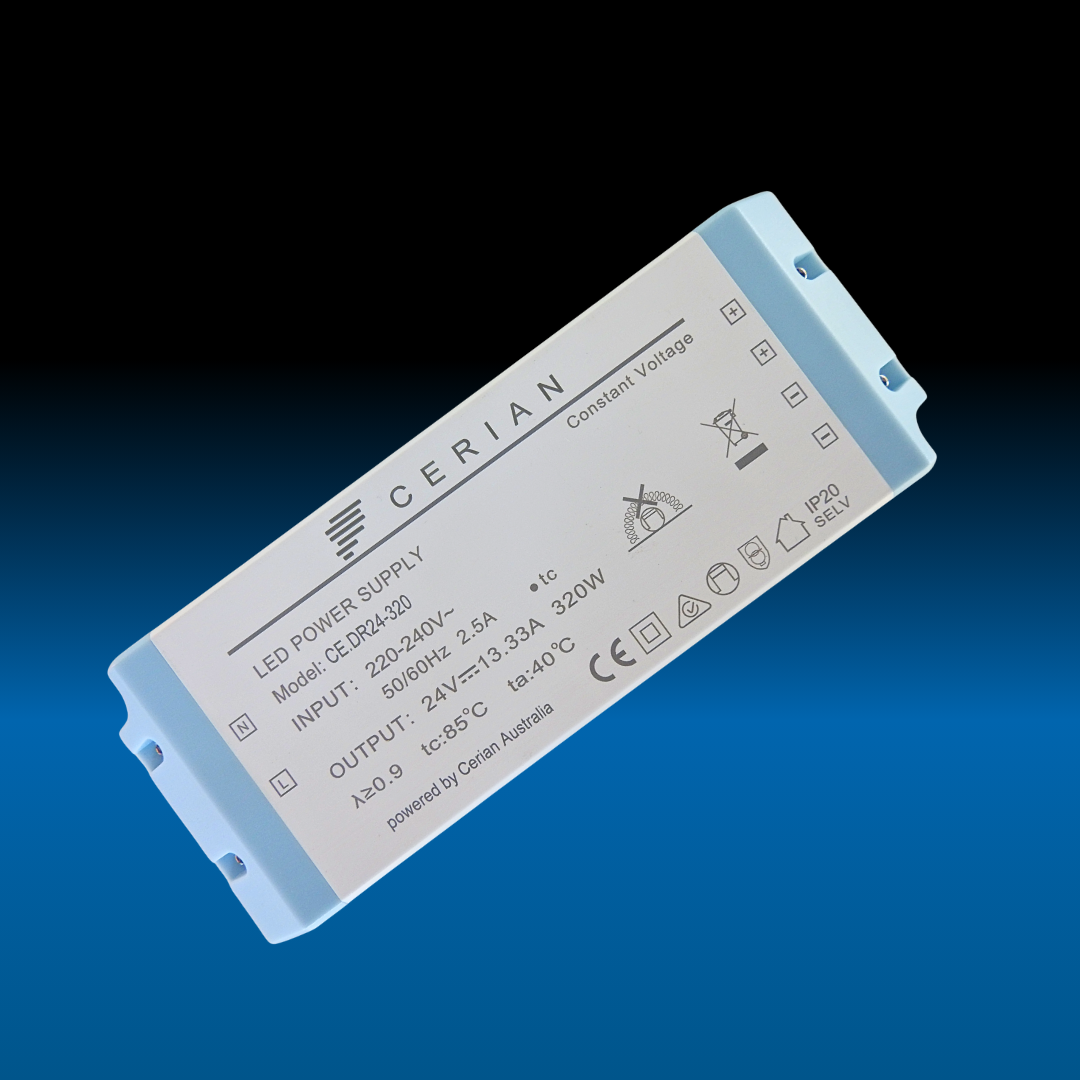

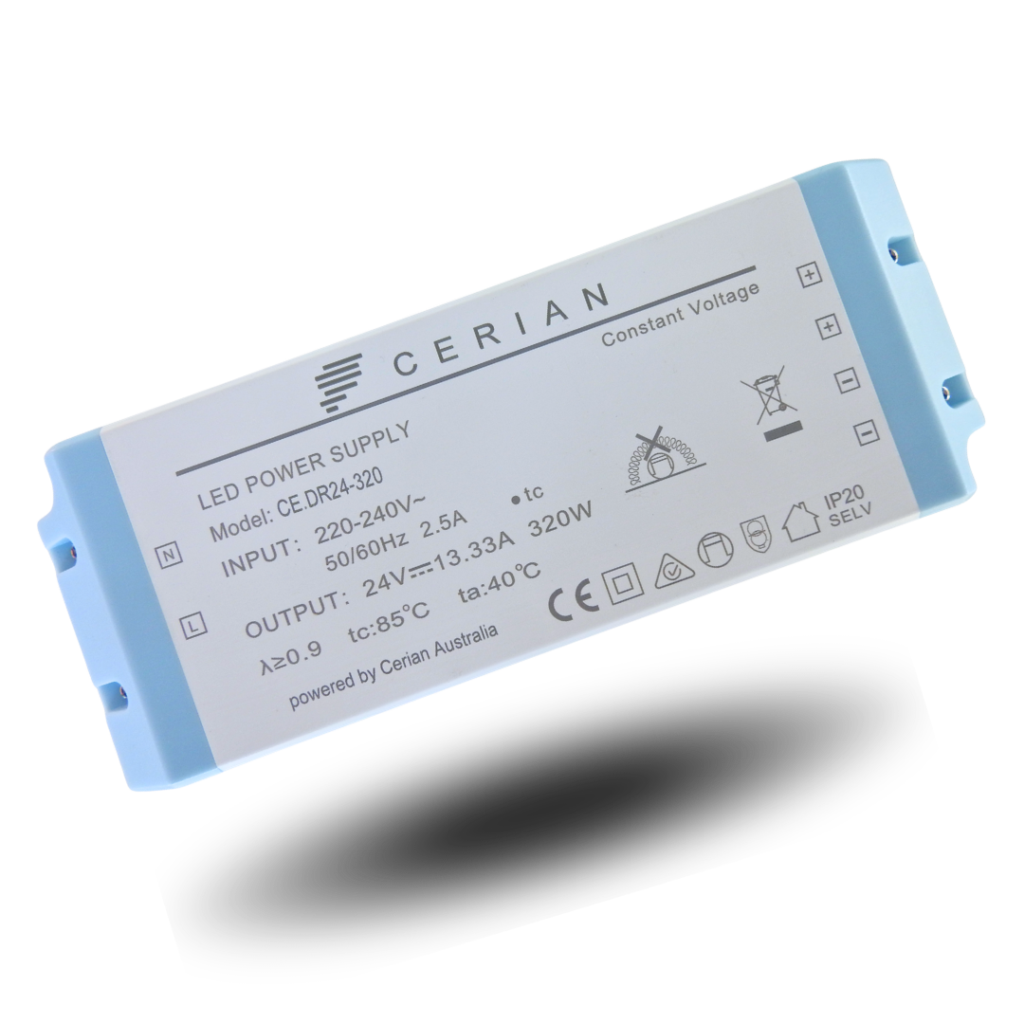

CERIAN 24V 320W Driver

The CERIAN 24V 320W LED Driver is a reliable constant voltage power supply designed for 24V LED strip lights, LED modules, signage and indoor decorative lighting. It provides up to 320W output at 24V DC, supporting loads up to approximately 13.33A.

With a pre-fitted 1200mm flex cable and Australian 2-pin plug, this LED driver offers convenient installation. It also features short-circuit protection, electrical isolation and a slim switch-mode design.

Rated IP20 for indoor use, the CE.DR24-320 is suitable for dry areas such as homes, offices, retail stores, cabinets and display installations. The driver is non-dimmable and provides stable power for consistent LED lighting performance.

Applications

The CERIAN 24V 320W LED Driver is suitable for a range of indoor LED lighting applications, including:

  • 24V COB LED strip lighting
  • 24V SMD LED strip lights
  • RGB LED strip lighting
  • Single-colour LED strips
  • Under-cabinet lighting
  • Display cabinet lighting
  • Retail display lighting
  • Indoor signage
  • Architectural feature lighting
  • Decorative LED installations
  • Commercial interior lighting

Installation Guidelines CERIAN 24V 320W Driver

For safe and reliable operation:

  • Install the driver indoors only.
  • Keep the power supply away from water and moisture.
  • Provide sufficient ventilation around the driver.
  • Do not cover or enclose the driver without suitable ventilation.
  • Check that the LED load is compatible with 24V DC constant voltage.
  • Do not exceed the 320W maximum output.
  • This model is non-dimmable.
  • Do not connect it to dimmer switches or PWM controllers.
  • Installation should be carried out by a suitably qualified person where required.

Why Choose the CERIAN CE.DR24-320?

The CERIAN 24V 320W LED Driver provides a practical solution for powering higher-load 24V LED lighting systems. Its constant voltage output helps deliver stable power, while the short-circuit protection and electrically isolated design support reliable operation.

The pre-fitted Australian plug and 1200mm cable make installation convenient. In addition, the slim housing allows flexible positioning in suitable indoor locations.

For larger LED strip lighting installations, the 320W capacity and approximately 13.33A output provide the power needed for a wide range of compatible 24V LED applications.

Key Features

  • 320W maximum output power
  • 24V DC constant voltage
  • Output current up to approximately 13.33A
  • Suitable for compatible 24V LED strip lights
  • Works with COB, SMD, RGB and single-colour LED strips
  • 220–240V AC input
  • Power factor >0.9
  • Efficiency >85% typical
  • Short-circuit protection
  • Electrically isolated design
  • Pre-fitted 1200mm flex cable
  • Australian 2-pin plug
  • Slim switch-mode power supply housing
  • IP20 indoor rating
  • Non-dimmable
  • Operating temperature from -20°C to +45°C
  • Dimensions: 210 × 80 × 36mm


Got questions about this product? [Get in Touch] with our team and we’ll guide you to the perfect match.

Product Specifications

Specification Details
Brand CERIAN
Model Number CE.DR24-320
Product Type 24V 320W LED Driver
Input Voltage 220–240V AC
Input Frequency 50/60Hz
Output Voltage 24V DC Constant Voltage
Output Power 320W max
Output Current 13.33A approx.
Efficiency >85% typical
Power Factor >0.9
Dimming Non-dimmable
Protection Short-circuit protection
Isolation Electrically isolated design
IP Rating IP20 – Indoor use only
Cable 1200mm flex cable
Plug Australian 2-pin plug
Cable Size 2 × 0.5mm²
Operating Temperature -20°C to +45°C
Housing Type Slim switch-mode power supply
Dimensions 210 × 80 × 36mm
Maximum Load 320W / 13.33A

Additional information

Weight 0.4 kg
Dimensions 30 × 9 × 5 cm
Brand

Cerain
0.0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%
0 of 0 reviews

Sorry, no reviews match your current selections

CERIAN 24V 320W DriverCERIAN 24V 320W DriverCERIAN 24V 320W Driver

Related products

Reliable 24V Constant Voltage LED Driver

The 24V 320W LED Driver provides a stable 24V DC constant voltage output for compatible LED lighting systems. It is designed to supply reliable power to LED strip lights and other 24V lighting products.

The 320W capacity makes it suitable for larger indoor LED installations where a higher-power driver is required.

320W Power Capacity for LED Lighting

With a maximum output of 320W and an output current of approximately 13.33A, this power supply can support a wide range of 24V LED lighting applications.

Always select a driver with sufficient capacity for the connected LED load. For reliable operation, avoid continuously operating the power supply at its maximum rated capacity.

Ideal for 24V LED Strip Lights

This 24V LED driver works with a range of compatible 24V LED lighting products, including:

  • COB LED strip lights
  • SMD LED strip lights
  • Single-colour LED strips
  • RGB LED strip lights
  • LED modules
  • Indoor decorative lighting

It provides constant voltage power to help maintain stable and consistent LED output.

Plug-and-Play Installation

The CE.DR24-320 comes with a 1200mm flex cable and Australian 2-pin plug. This makes connection simple for suitable indoor installations.

The pre-fitted cable also helps reduce installation time when setting up compatible LED lighting systems.

Built-In Short-Circuit Protection

Safety is important when powering LED lighting. This model includes short-circuit protection to help protect the power supply and connected lighting system in the event of a short circuit.

The electrically isolated design also provides an additional layer of electrical separation between the input and output.

Slim and Compact Design

The slim housing measures approximately 210 × 80 × 36mm. Its compact profile makes it easier to position in suitable cabinets, ceiling spaces and behind lighting fixtures.

Always allow adequate ventilation around the driver and never cover the power supply during operation.

IP20 Indoor LED Driver

The CE.DR24-320 has an IP20 rating, making it suitable for dry indoor environments.

It is ideal for residential, commercial and retail applications where the driver can remain protected from water and moisture.

This driver is not suitable for outdoor or wet-area installation.

Non-Dimmable Constant Voltage Power Supply

This model is non-dimmable and is designed to provide stable power for compatible 24V LED lighting.

It should not be connected to dimmer switches or PWM controllers. For dimmable LED installations, select a compatible dimmable driver and control system.

What is the CERIAN CE.DR24-320 used for?

The CE.DR24-320 is a 24V 320W LED Driver designed to power compatible 24V LED strip lights, LED modules and indoor decorative lighting.

How much power does this LED driver provide?

The driver provides up to 320W of power at 24V DC, with an output current of approximately 13.33A.

Is this LED driver suitable for COB LED strips?

Yes. It can be used with compatible 24V COB LED strip lights, as well as suitable SMD, RGB and single-colour LED strips.

Is the CE.DR24-320 dimmable?

No. The CE.DR24-320 is a non-dimmable LED driver. It should not be used with dimmer switches or PWM controllers.

Can this LED driver be used outdoors?

No. The driver has an IP20 rating and is designed for indoor dry environments only. It must be protected from water and moisture.

Does it have short-circuit protection?

Yes. The CE.DR24-320 includes short-circuit protection to help protect the power supply and connected lighting system.

What plug does the driver come with?

It comes with a 1200mm flex cable and Australian 2-pin plug, using 2 × 0.5mm² cable.

What are the dimensions?

The driver measures approximately 210 × 80 × 36mm.

What voltage does the LED driver output?

It provides a 24V DC constant voltage output, making it suitable for compatible 24V LED lighting products.

What is the maximum LED load?

The maximum rated output is 320W. The connected LED load must be compatible with 24V DC constant voltage operation.
