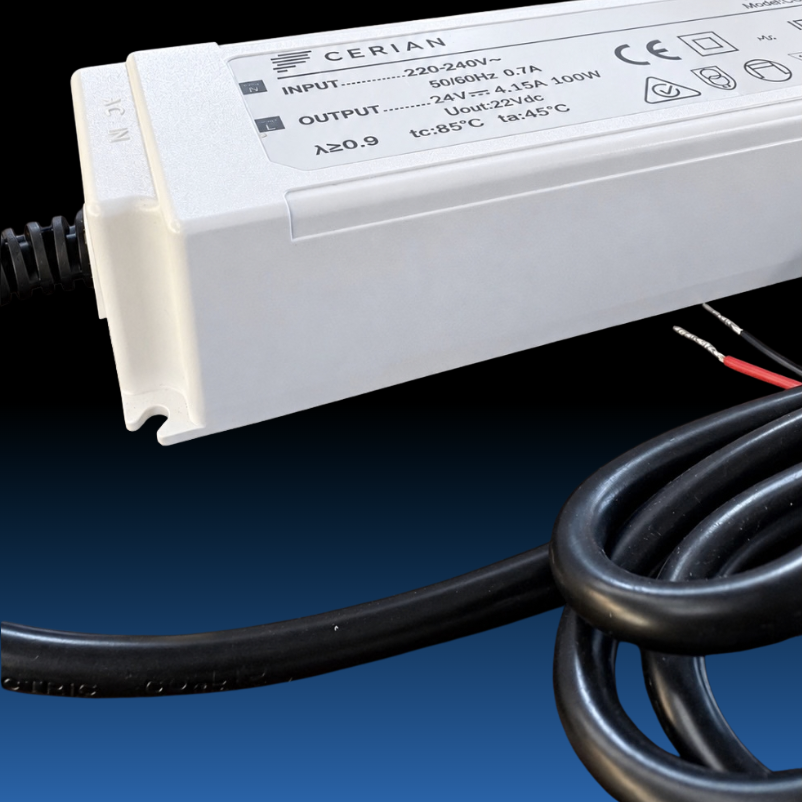

Vesta lines’s CERIAN 24V 100W LED Driver IP68 – CE.DR24-100-IP68 | Constant Voltage Power Supply for LED Strip Lights
Reliable 100W LED Driver, Power Supply for LED Strip Lighting

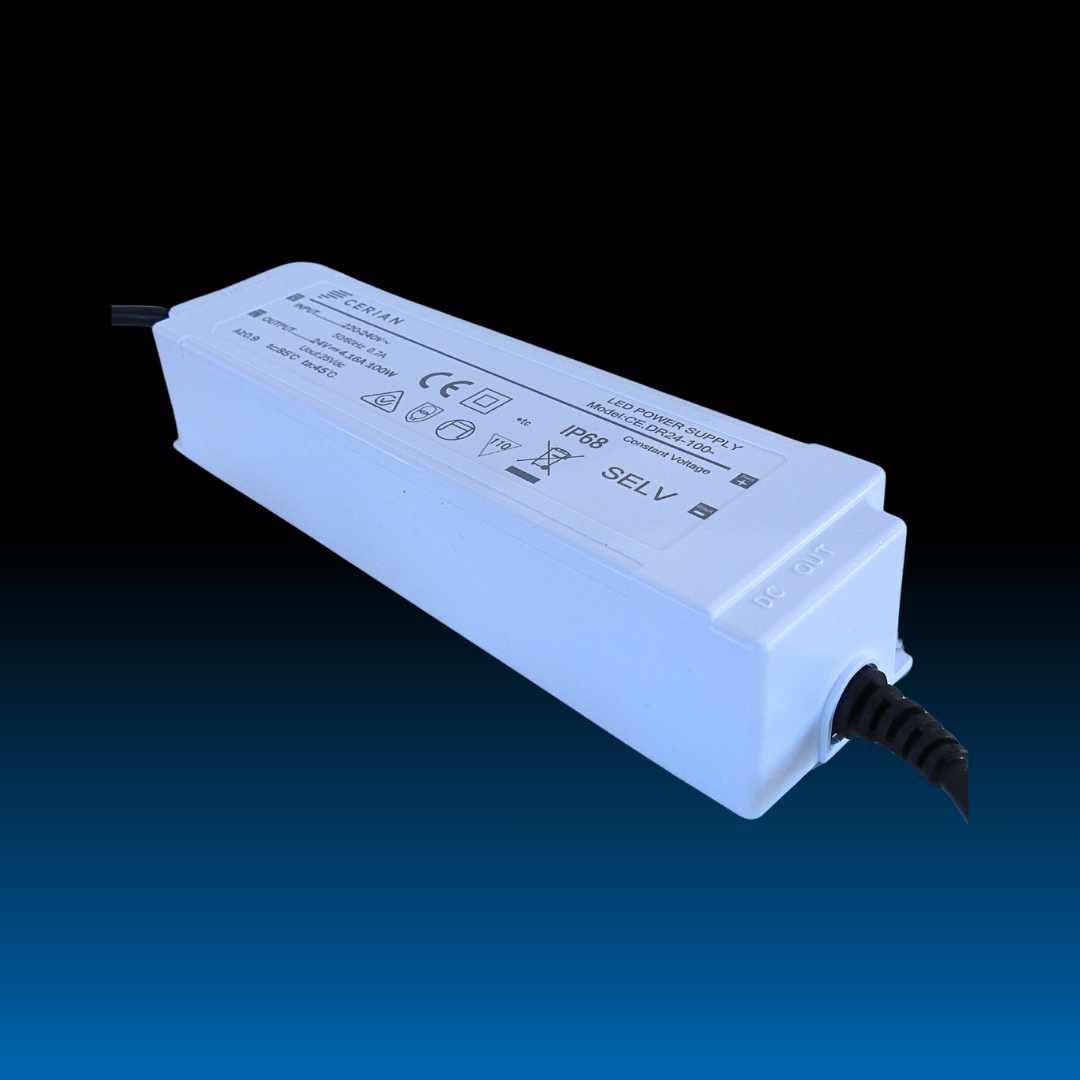

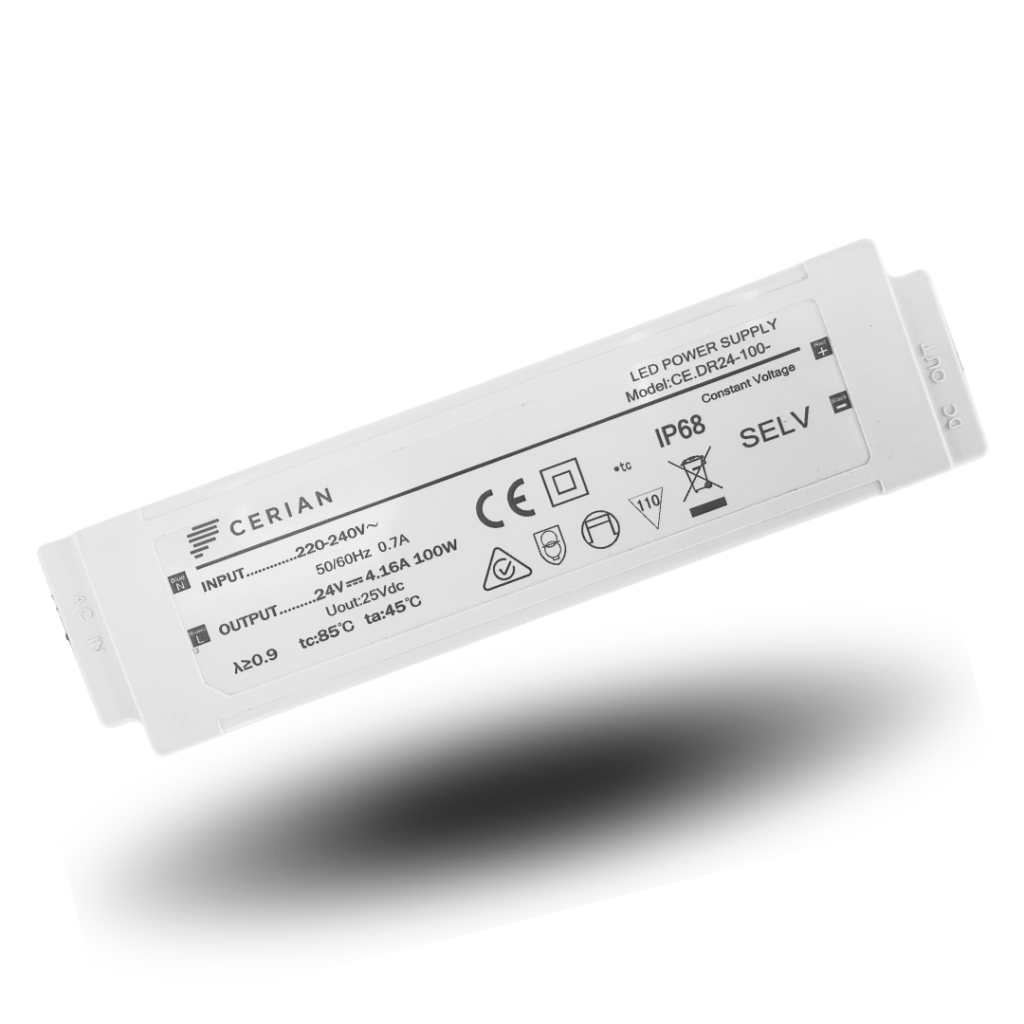

The CERIAN CE.DR24-100-IP68 24V 100W LED Driver is a high-quality, constant voltage power supply designed to deliver reliable and efficient power to 24V LED strip lights and other low-voltage LED lighting systems. With a design, short-circuit protection, and Australian 2-pin plug, it’s ideal for safe and simple indoor and outdoor installations.
Key Features
- Constant Voltage 24V DC Output – Perfect for 24V LED strip lights, LED modules, and decorative lighting.
- 100W Power Capacity – Provides stable output for up to 4.16A load.

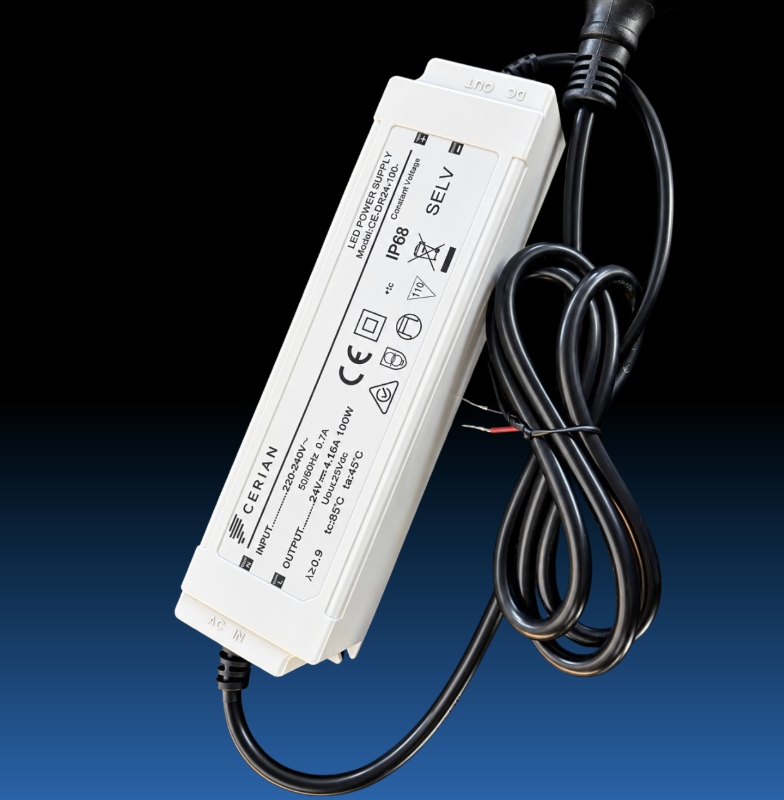

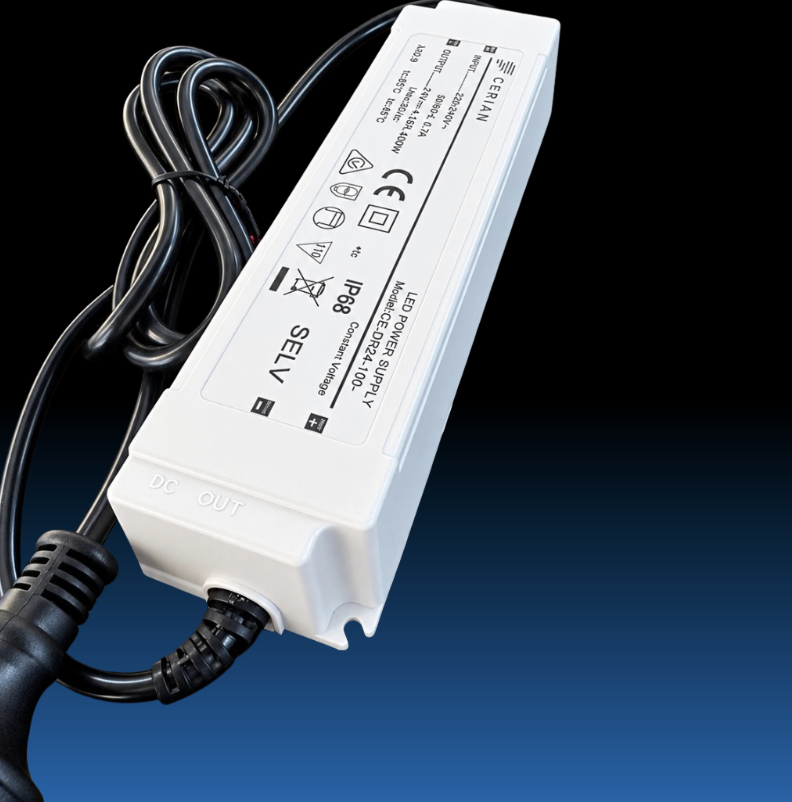

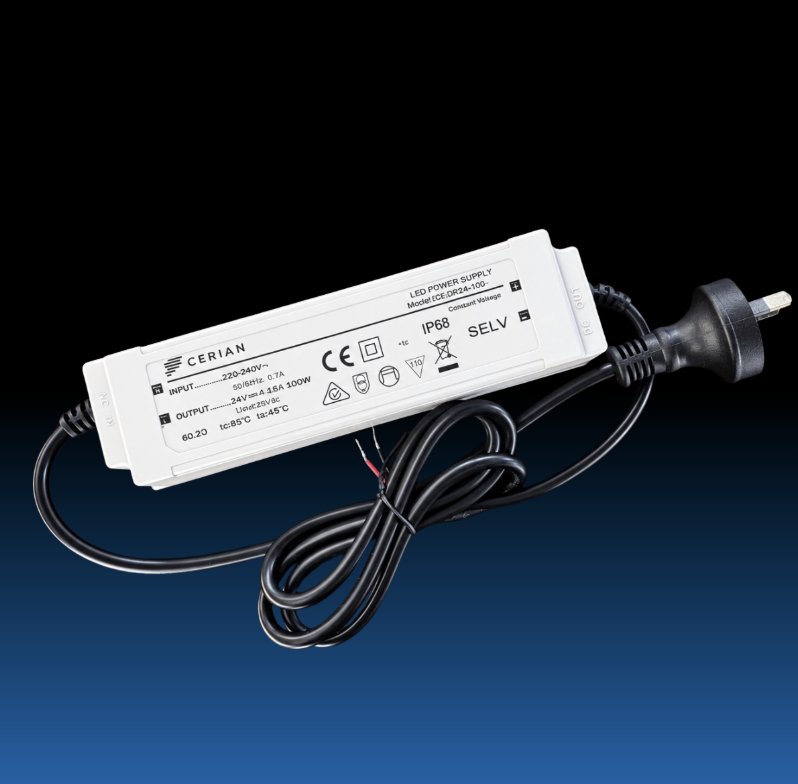

- Plug & Play Convenience – Comes pre-fitted with a 1200mm flex cable and Australian 2-pin plug (2×0.5mm²).
- Safe and Reliable – Includes short-circuit protection and full isolation for user safety.
- Slim & Compact Design – Easy to conceal in cabinets, ceilings, or behind fixtures.
- Indoor And Outdoor Rated (IP68) – Designed for dry areas such as homes, offices, and retail spaces.
- Non-Dimmable Model – Provides constant brightness with no flicker.
- Dimensions – 190x43x35mm

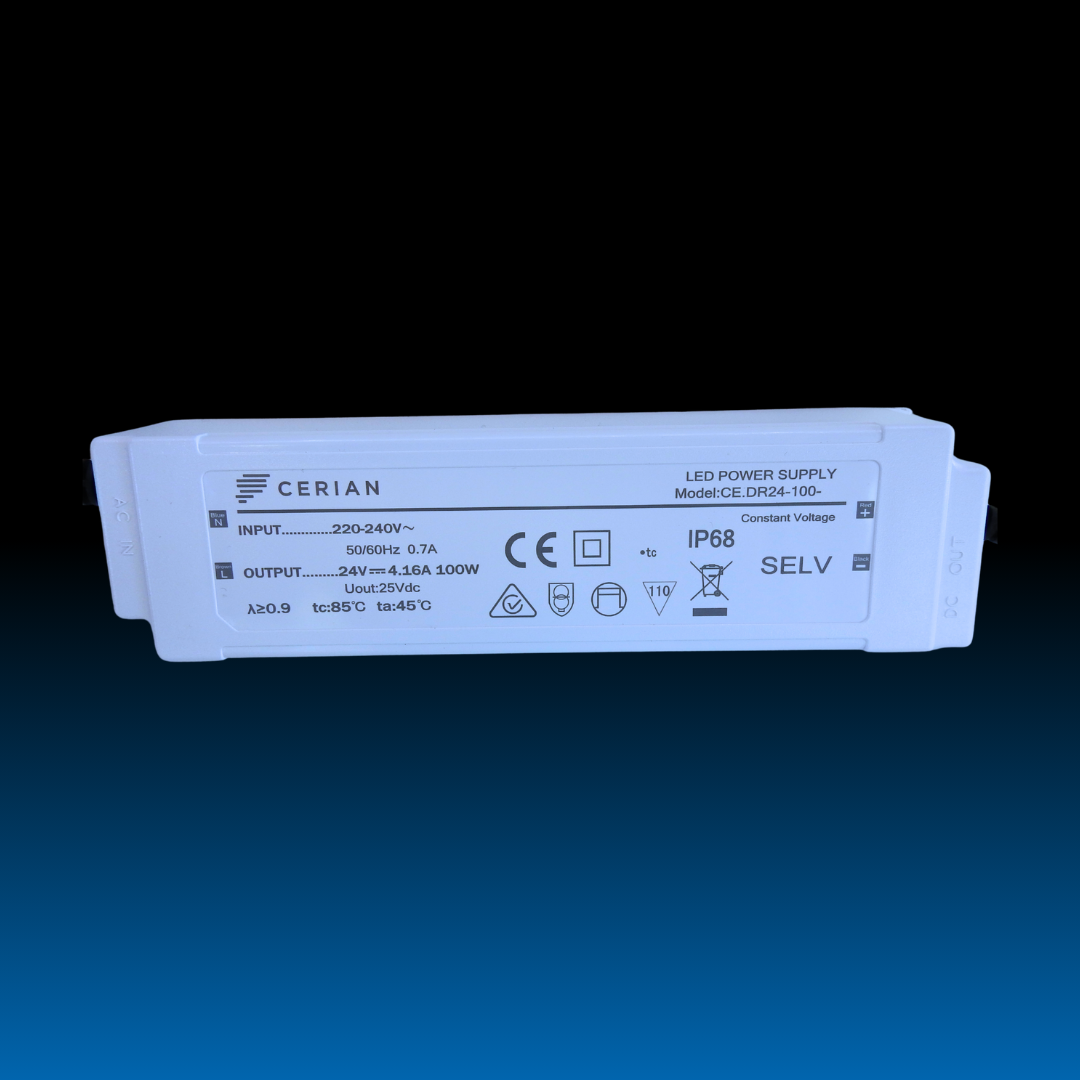

Technical SpecificationsCERIAN 24V 100W LED Driver
| Specification | Details |
|---|---|
| Brand | CERIAN |
| Model Number | CE.DR24-100-IP68 |
| Input Voltage | 220–240V AC, 50/60Hz |
| Output Voltage | 24V DC (constant voltage) |
| Output Power | 100W max |
| Output Current | 4.16A (approx.) |
| Efficiency | >85% (typical) |
| Power Factor | >0.9 |
| Dimming | Non-dimmable |
| Protection | Short-circuit protection |
| Isolation | Electrically isolated design |
| IP Rating | IP68 – Indoor And Outdoor |
| Cable | 1200mm flex with AU 2-pin plug (2×0.5mm²) |
| Operating Temperature | -20°C to +45°C |
| Housing Type | Slim switch-mode power supply |
Applications
Use this 24V LED driver for:
-
24V LED strip lights (COB, SMD, RGB, or single colour )
-
Under-cabinet or display lighting
-
Signage and architectural lighting
-
Indoor And outdoor feature lighting and decorative installations
Installation Notes
-
For indoor And Outdoor (IP68)
-
Ensure proper ventilation – do not cover the driver.
-
This model is non-dimmable and should not be used with dimmer switches or PWM controllers.
Why Choose CERIAN 24V 100W LED Driver?
CERIAN LED power supplies are engineered for reliability, efficiency, and safety. The CE.DR24-100 delivers consistent 24V output, protecting your lighting investment and ensuring optimal performance for your LED strip systems.
